    Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]

    Art: 1395W-WIC
      Wichard Marine

      Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]

      Art: 1395W-WIC
      Sale price $157.84 USDRegular price $185.69 USD
      Regular price $157.84 USD
      Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]

      Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]

      Item # 1395W-WIC
      $157.84$185.69

      In stock, ready to ship

      • Secure checkout
      • Genuine brand-name marine gear
      • Need help choosing? Call 786-208-7519
      Need it installed?

      Our mobile marine technicians can install it at your dock across South Florida.

      Book Service
      Description

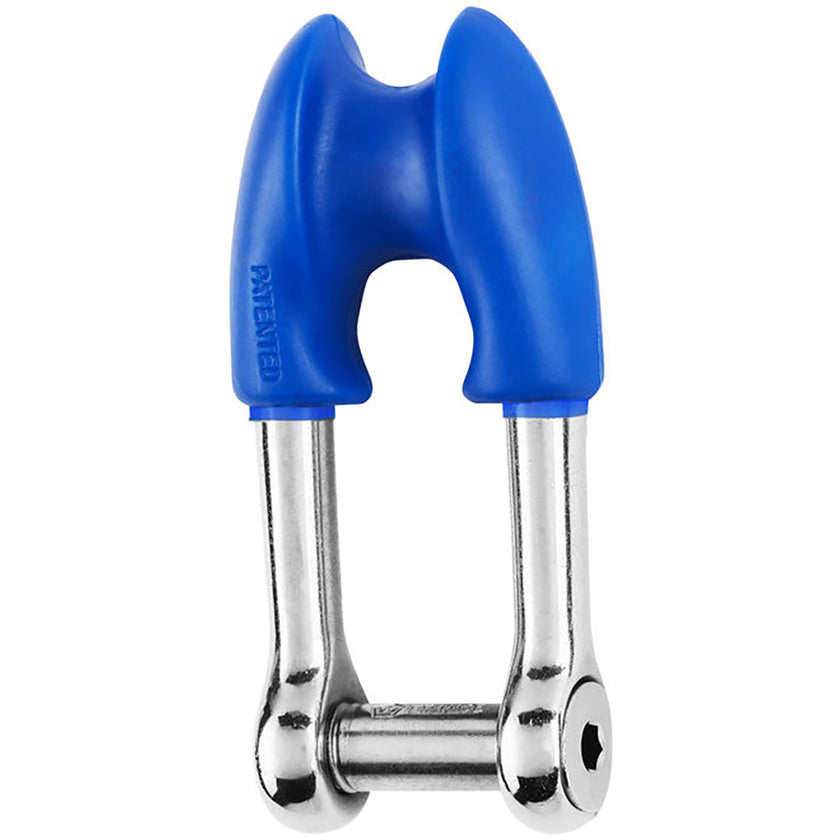

      Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

      Features:

      • Thimble shackle with allen head pin forged in grade 316L stainless steel
      • Allows a rope to be spliced without adding and additional thimble
      • With the captive pin, no risk to lose the pin
      • Outstanding working and breaking loads

      Applications:

      • Mainsheet halyards
      • Max rope size: 16 mm

      Specifications:

      • Materials: 316 stainless steel grade
      • Working load: (lb) 3350 / (kg) 1520
      • Breaking load: (lb) 11020 / (kg) 5000
      • Weight: (lb) 0.313 / (g) 142

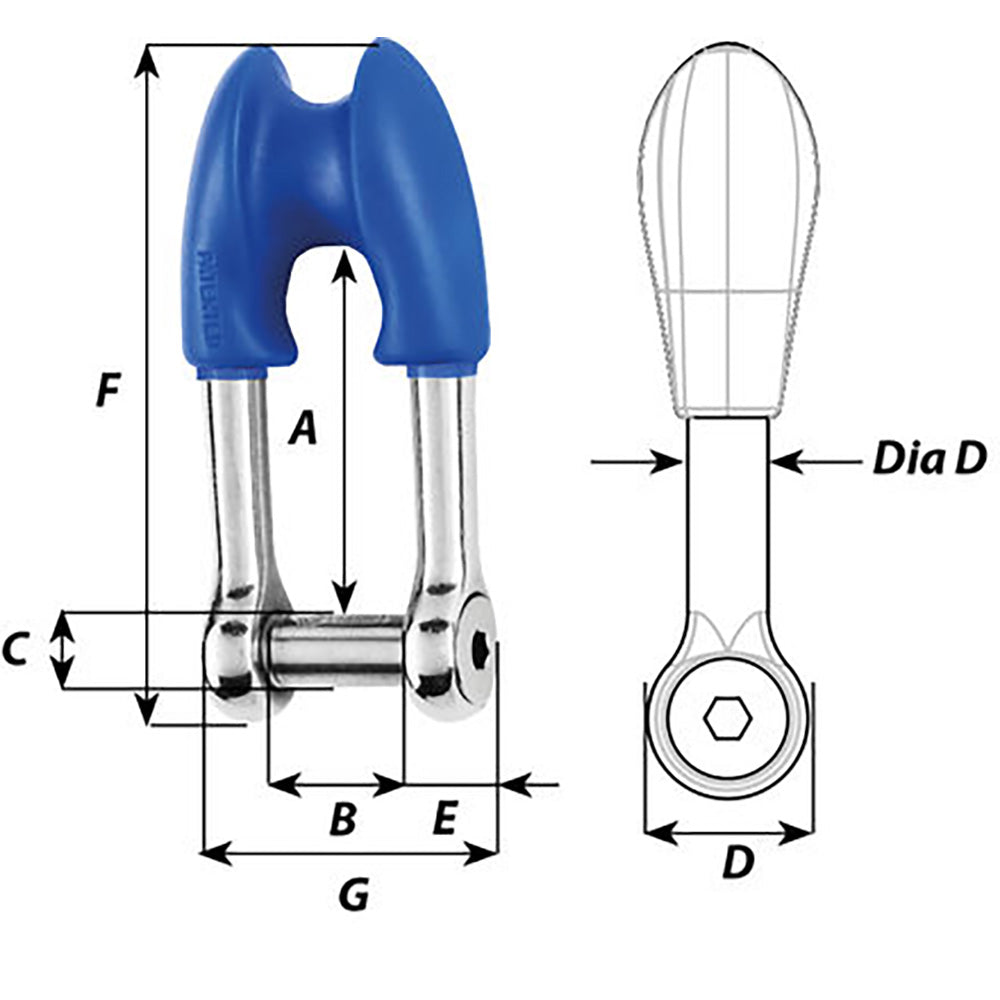

      Dimensions:

      • A: (inch) 2 1/64" / (mm) 51
      • B: (inch) 25/32" / (mm) 20
      • C: (inch) 25/64" / (mm) 10
      • D: (inch) 25/32" / (mm) 20
      • D diameter: (inch) 25/64" / (mm) 10
      • E: (inch) 5/16" / (mm) 8
      • F: (inch) 3 25/32" / (mm) 96
      • G: (inch) 1 39/64" / (mm) 41

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
      Specifications
      BrandWichard Marine
      Item #1395W-WIC
      Product typeShackles/Rings/Pins
      Shipping weight0.3 lb
