      Description

      Self-Locking Twisted Shackle - Diameter 10mm - 13/32"

      Features:

      • Self-locking twisted shackle forged in grade 316L stainless steel
      • The pin is locked into one of the indentations
      • No risks of loosening due to vibrations
      • Outstanding working and breaking loads

      Applications:

      • Perfect for applications where a  90° angle twist setup is required
      • Often used to attach an unarticulated part (block on a rail) or on purchases

      Specifications:

      • Materials: 316 stainless steel grade
      • Working load: (lb) 3170 / (kg) 1440
      • Breaking load: (lb) 9920 / (kg) 4500
      • Weight: (lb) 0.28 / (g) 127

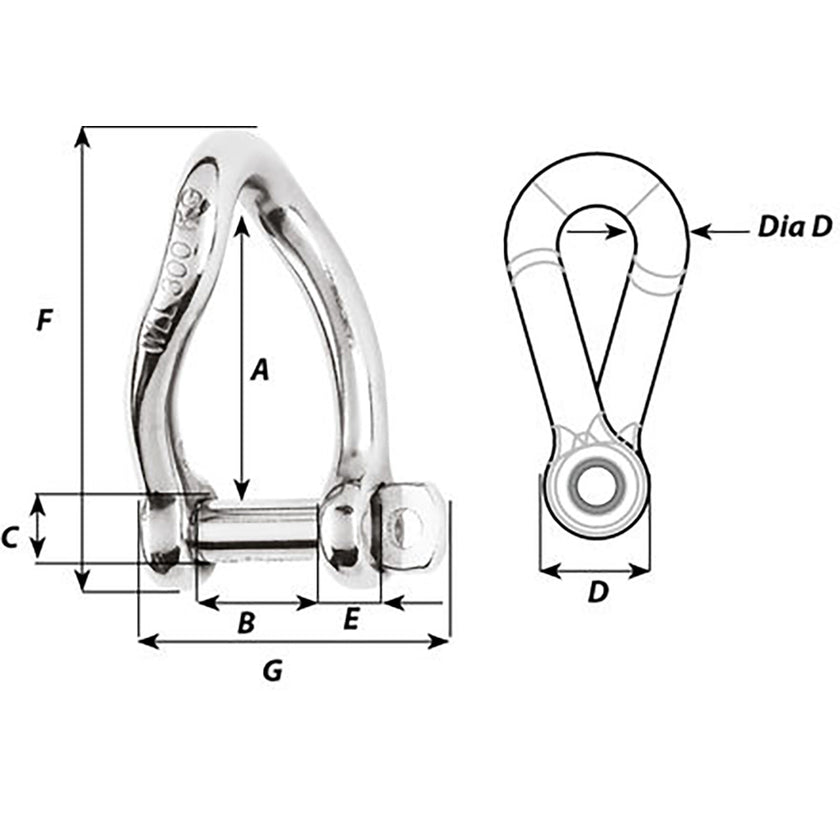

      Dimensions:

      • A: (inch) 1 31/32" / (mm) 50
      • B: (inch) 25/32" / (mm) 20
      • C: (inch) 25/64" / (mm) 10
      • D: (inch) 3/4" / (mm) 19
      • D diameter: (inch) 25/64" / (mm) 10
      • E: (inch) 23/64" / (mm) 9
      • F: (inch) 2 29/32" / (mm) 74

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual
