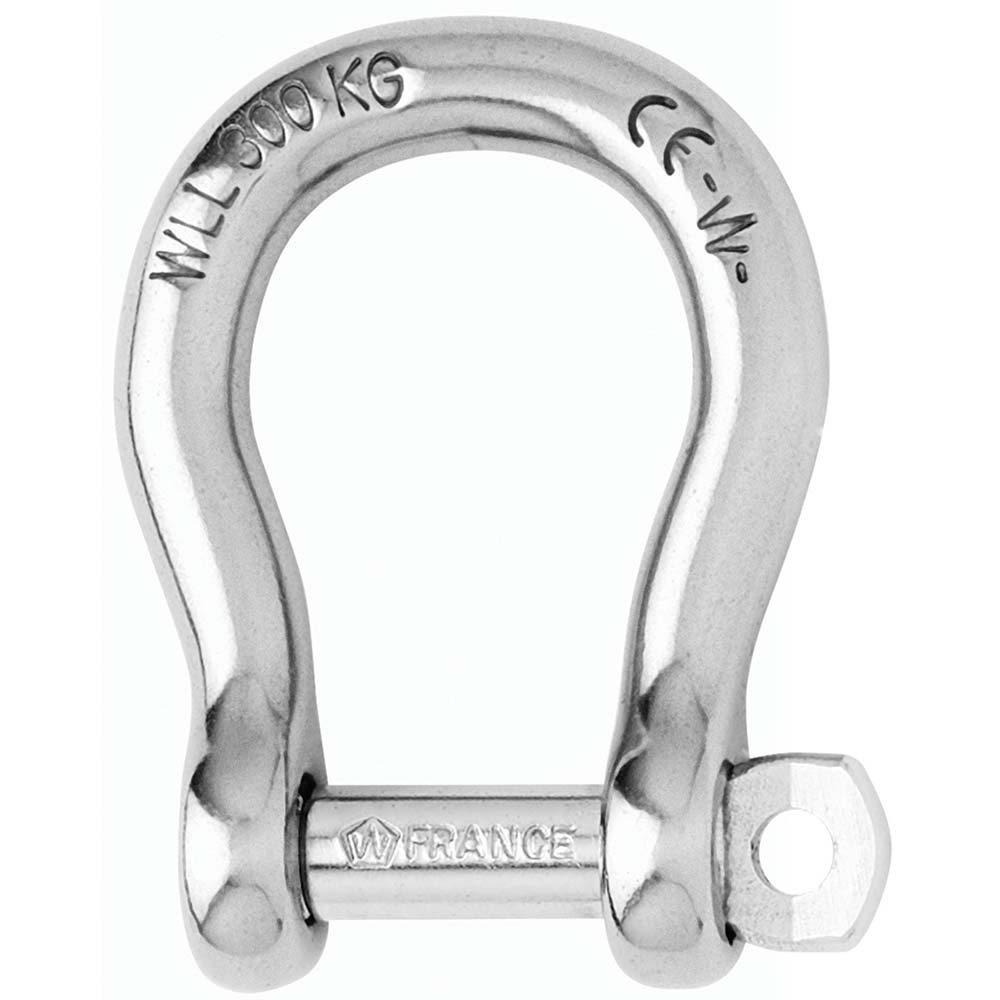

Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16" [1244W]
Art: 1244W-WIC
Description
Self-Locking Bow Shackle - Diameter 8mm - 5/16"
Features:
- Self-locking bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1190
- Breaking load (lb) 5950
- Weight (lb) 0.15

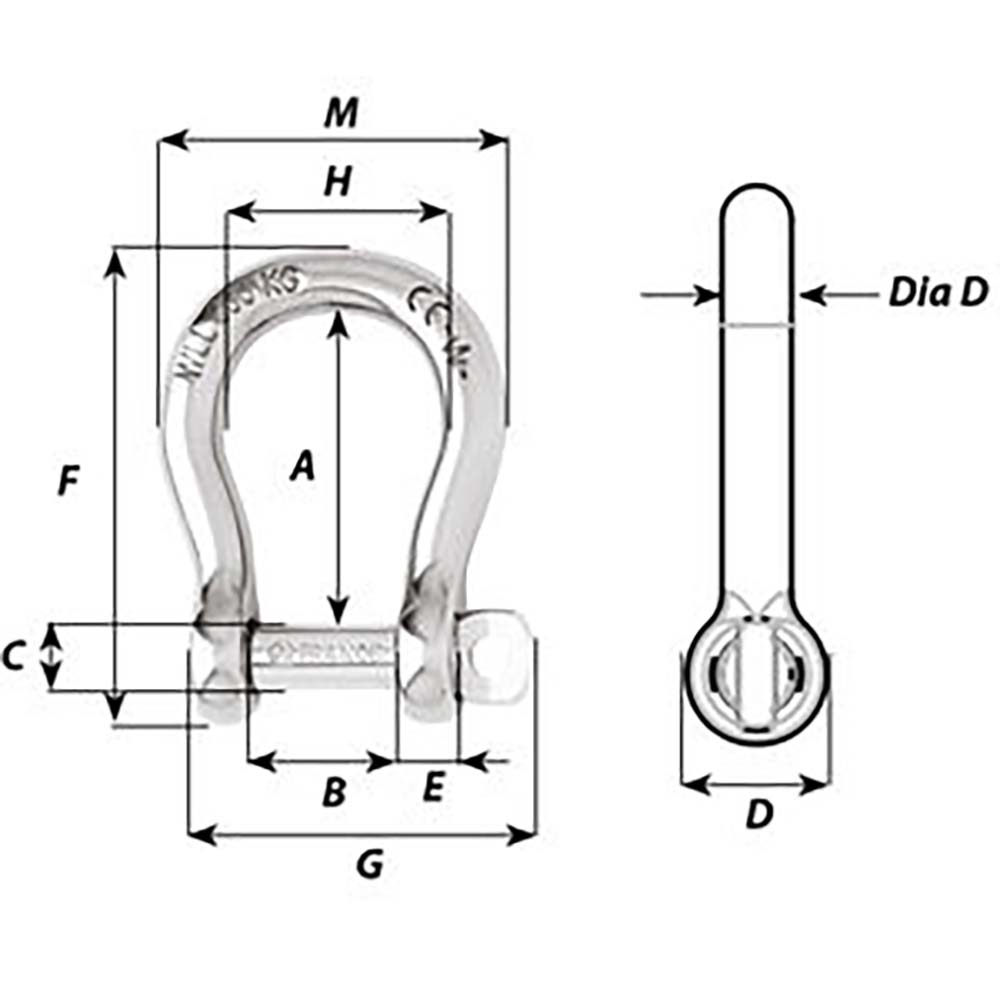

Dimensions (see 2nd image):
- A (inch) 1-29/64"
- B (inch) 5/8"
- C (inch) 5/16"
- D (inch) 5/8"
- D diameter (inch) 5/16"
- E (inch) 9/32"
- M (inch) 1-17/32"
![Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16" [1244W]](http://www.marinepartsandelectronics.com/cdn/shop/files/93105XL.jpg?v=1732450188&width=1000)
Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16" [1244W]
$38.73$45.57
- Secure checkout
- Genuine brand-name marine gear
- Need help choosing? Call 786-208-7519
Need it installed?
Book ServiceOur mobile marine technicians can install it at your dock across South Florida.
Description
Self-Locking Bow Shackle - Diameter 8mm - 5/16"
Features:
- Self-locking bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1190
- Breaking load (lb) 5950
- Weight (lb) 0.15
Dimensions (see 2nd image):
- A (inch) 1-29/64"
- B (inch) 5/8"
- C (inch) 5/16"
- D (inch) 5/8"
- D diameter (inch) 5/16"
- E (inch) 9/32"
- M (inch) 1-17/32"
Specifications
| Brand | Wichard Marine |
|---|---|
| Item # | 1244W-WIC |
| UPC | 768536012446 |
| Product type | Shackles/Rings/Pins |
| Shipping weight | 0.15 lb |
