      Description

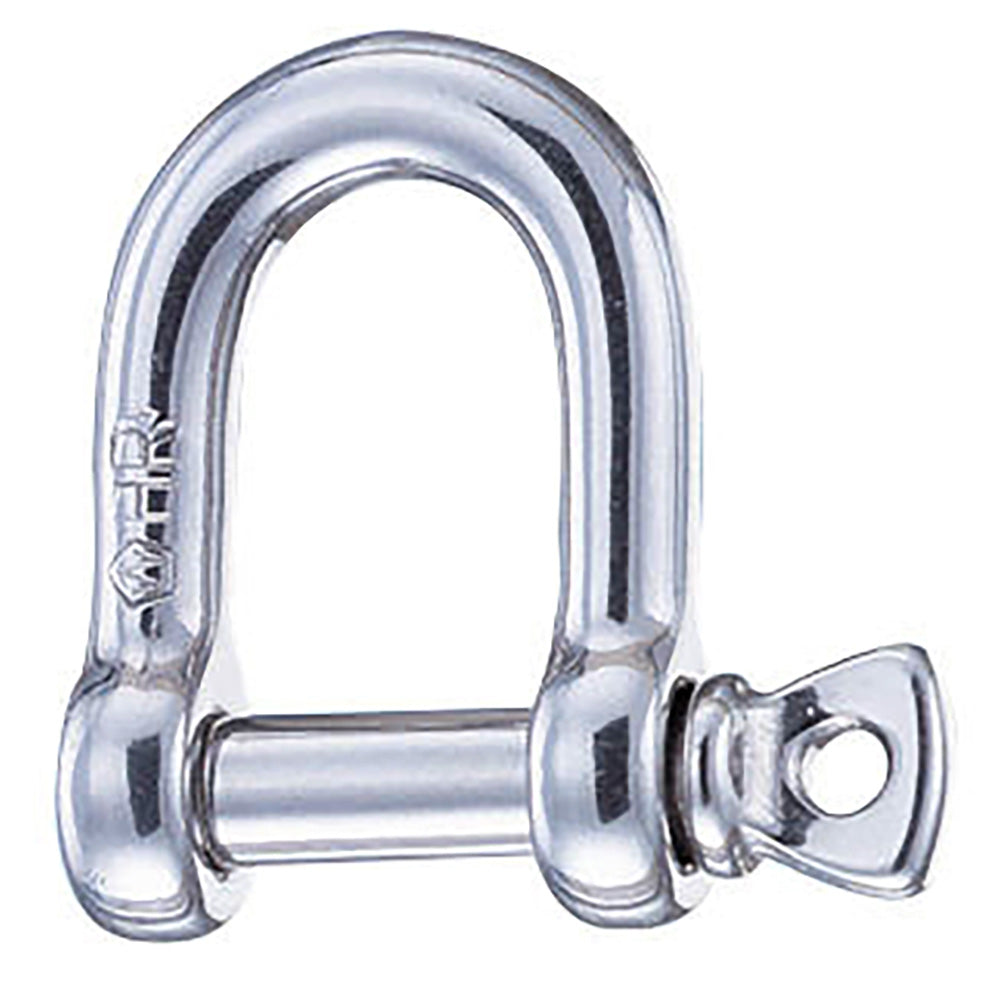

      HR D Shackle - 14mm Diameter - 35/64"

      Features:

      • Forged D shackle in HR stainless steel grade (17,4 PH)
      • Outstanding working and breaking load
      • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking

      Applications:

      • Applications requesting high loads
      • Standard applications of the shackle
      • Attachment applications: blocks, head …
      • Do not use it for mooring applications

      Specifications:

      • Materials: HR 17.4 PH stainless steel grade
      • Working load: (lb) 11280 / (kg) 5120
      • WLL: (lb) 5290 / (kg) 2400
      • Breaking load: (lb) 26450 / (kg) 12000
      • Weight: (lb) 0.67 / (g) 304

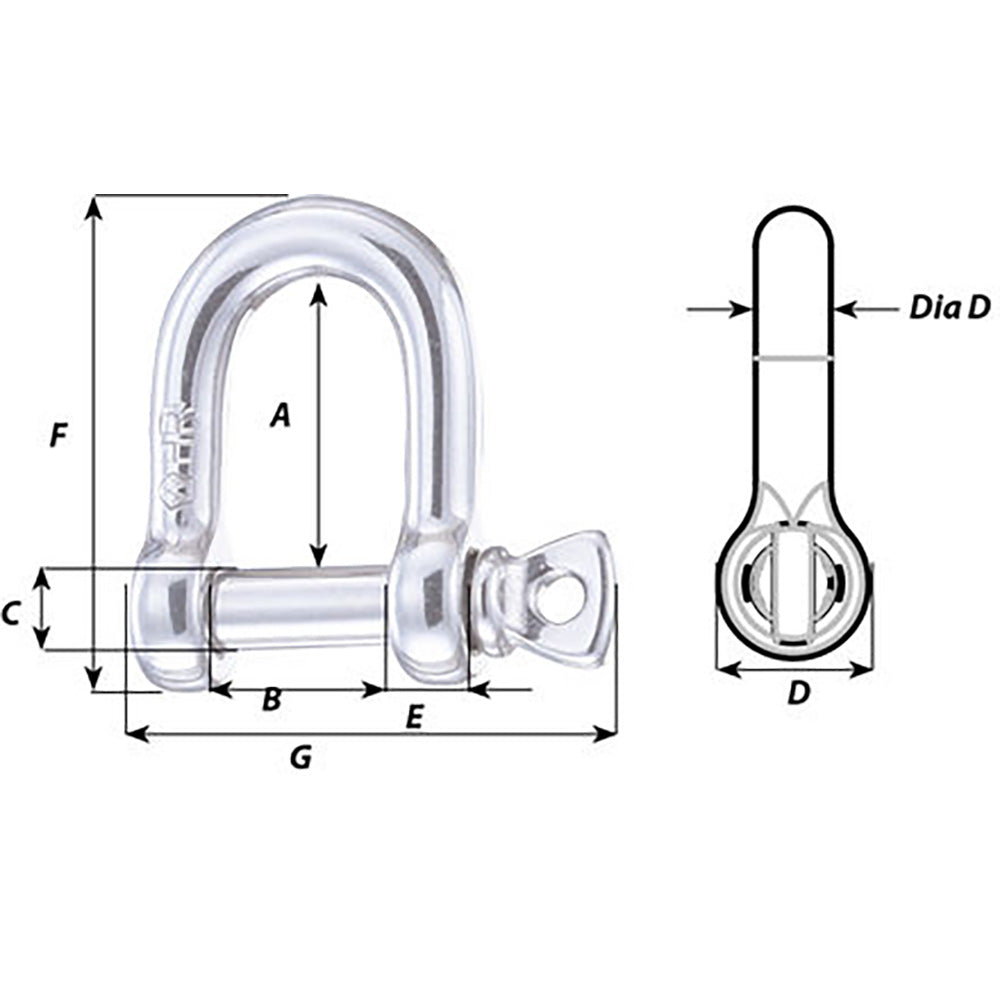

      Dimensions:

      • A: (inch) 1 59/64" / (mm) 49
      • B: (inch) 1 7/64" / (mm) 28
      • D diameter: (inch) 35/64" / (mm) 14

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
      • High Resistance (HR)

      *Sold as an Individual


      Quick Guide (pdf)
      Specifications
      BrandWichard Marine
      Item #11207W-WIC
      UPC3587790112078
      Product typeShackles/Rings/Pins
      Shipping weight0.7 lb
