Wichard Marine

    Wichard HR Bow Shackle - 20mm Diameter - 25/32" [11248W]

    Art: 11248W-WIC
      Wichard Marine

      Wichard HR Bow Shackle - 20mm Diameter - 25/32" [11248W]

      Art: 11248W-WIC
      Sale price $727.05 USDRegular price $855.35 USD
      Regular price $727.05 USD
      Wichard HR Bow Shackle - 20mm Diameter - 25/32" [11248W]

      Wichard HR Bow Shackle - 20mm Diameter - 25/32" [11248W]

      Item # 11248W-WICUPC 768536027952
      $727.05$855.35

      In stock, ready to ship

      • Secure checkout
      • Genuine brand-name marine gear
      • Need help choosing? Call 786-208-7519
      Need it installed?

      Our mobile marine technicians can install it at your dock across South Florida.

      Book Service
      Description

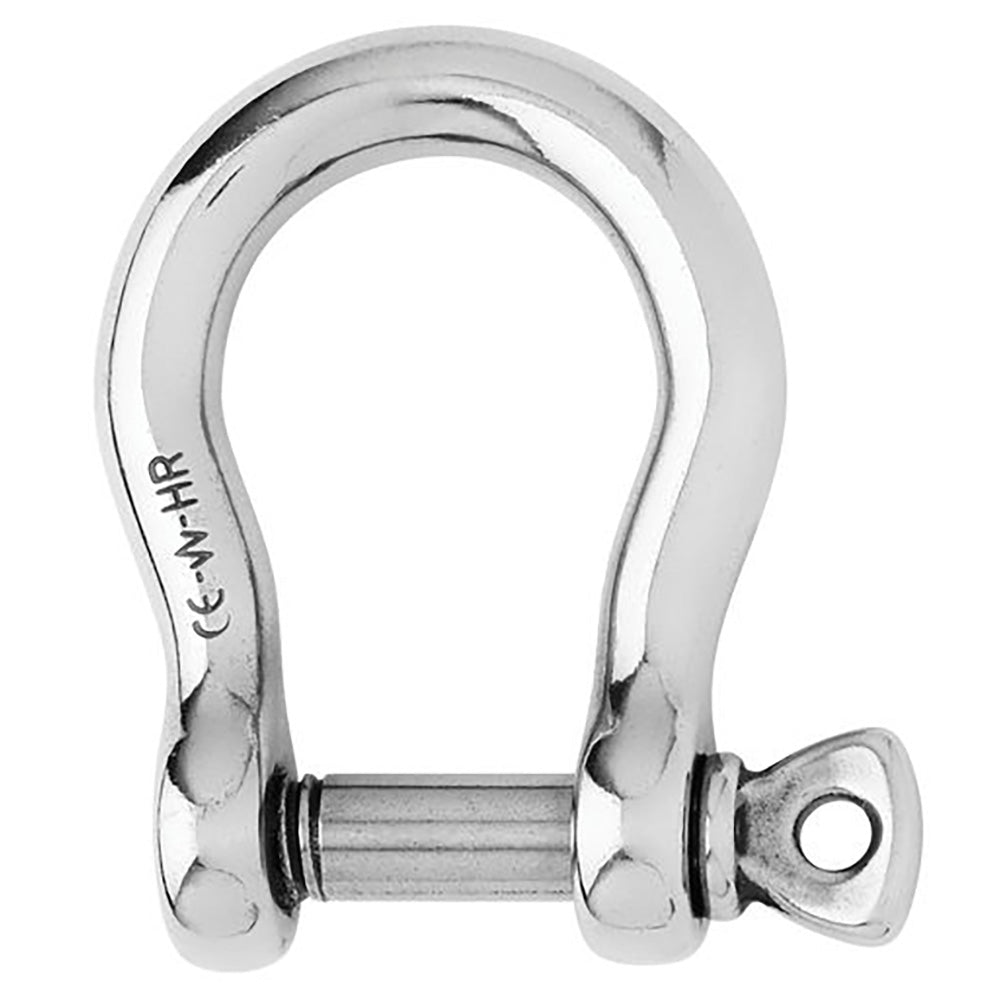

      HR Bow Shackle - 20mm Diameter - 25/32"

      Features:

      • Forged bow shackle in HR stainless steel grade (17,4 PH)
      • Outstanding working and breaking load
      • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking

      Applications:

      • Applications requesting high loads
      • To be used when ample room is required
      • Possibility to attach several lines or cables
      • Do not use it for mooring applications

      Specifications:

      • Materials: HR 17.4 PH stainless steel grade
      • Working load: (lb) 19400 / (kg) 8800
      • WLL: (lb) 12340 / (kg) 5600
      • Breaking load: (lb) 61720 / (kg) 28000
      • Weight: (lb) 2.229 / (kg) 1.011

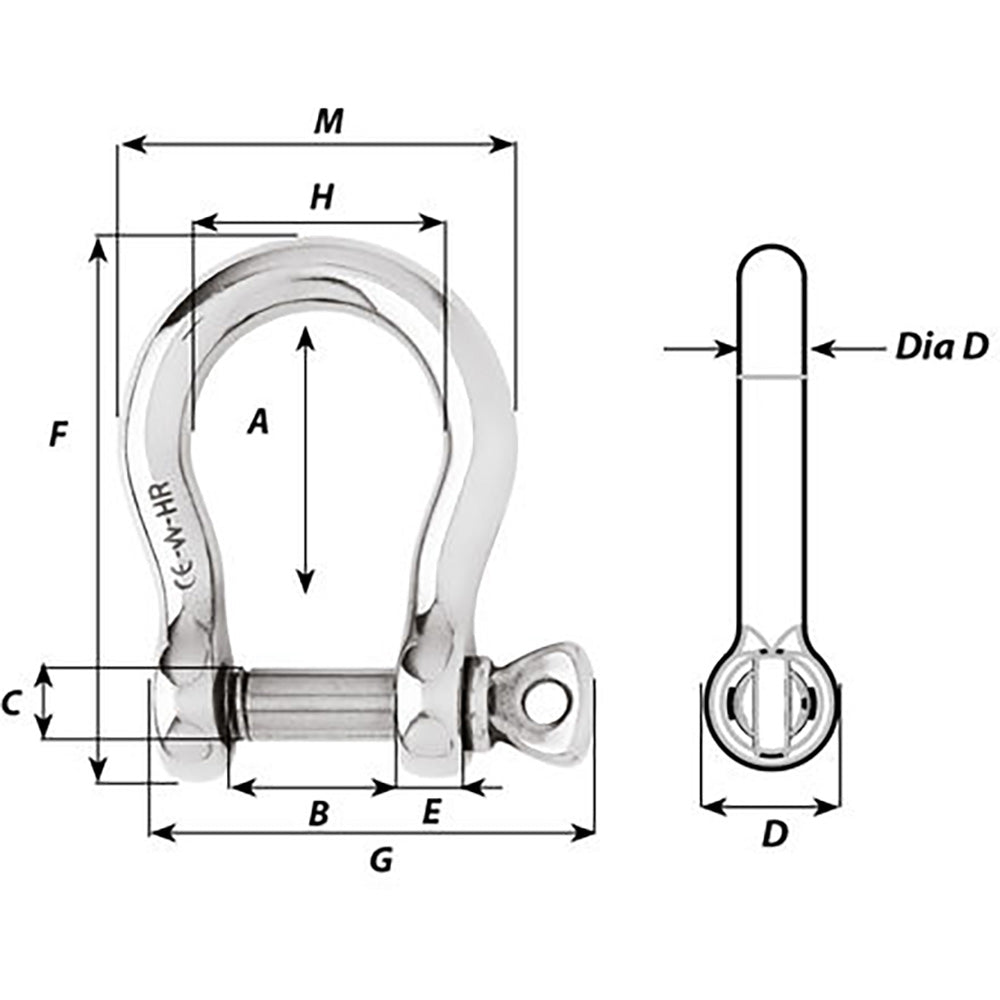

      Dimensions:

      • A: (inch) 3 5/32" / (mm) 80
      • B: (inch) 1 37/64" / (mm) 40
      • C: (inch) 25/32" / (mm) 20
      • D: (inch) 1 37/64" / (mm) 40
      • D diameter: (inch) 25/32" / (mm) 20
      • E: (inch) 45/64" / (mm) 18
      • M: (inch) 3 15/16" / (mm) 100

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
      • High Resistance (HR)

      *Sold as an Individual


      Quick Guide (pdf)
      Specifications
      BrandWichard Marine
      Item #11248W-WIC
      UPC768536027952
      Product typeShackles/Rings/Pins
      Shipping weight2.35 lb
