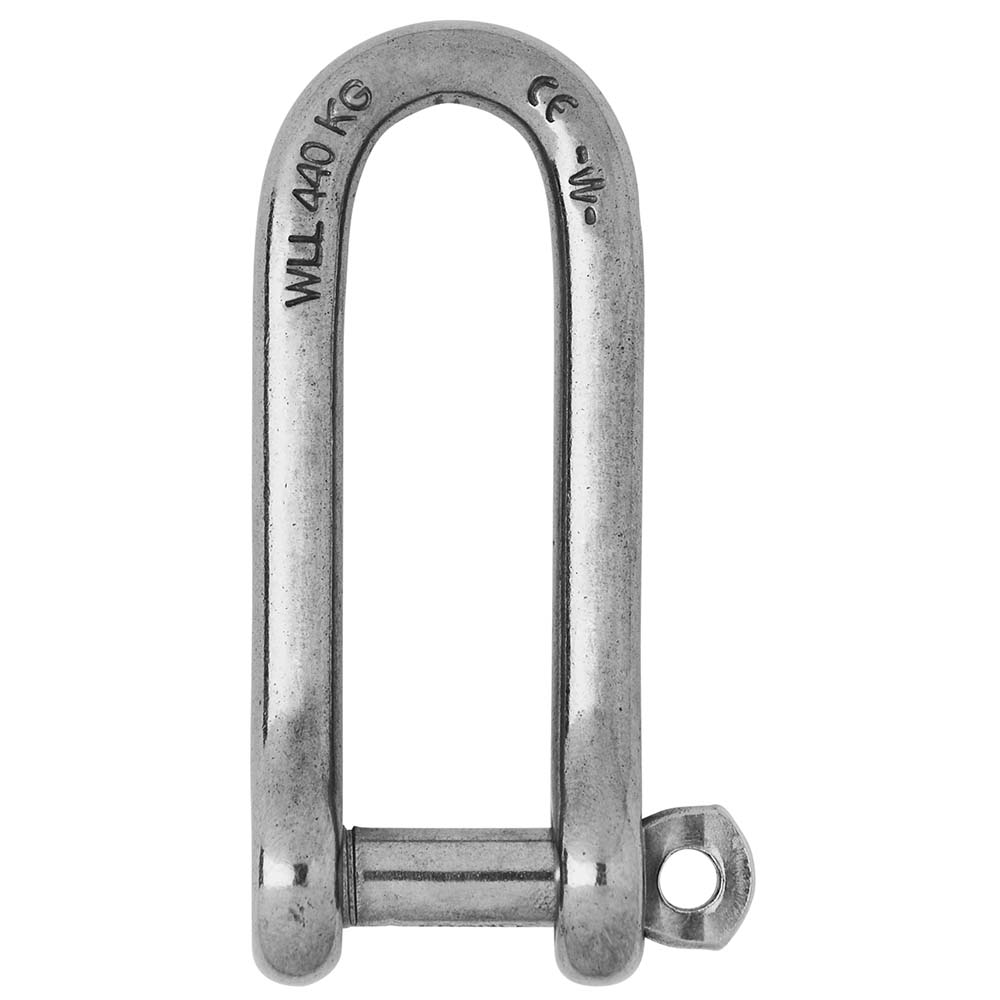

    Wichard Captive Pin Long D Shackle - Diameter 5mm - 3/16" [1412W]

    Art: 1412W-WIC
      Wichard Marine

      Wichard Captive Pin Long D Shackle - Diameter 5mm - 3/16" [1412W]

      Art: 1412W-WIC
      Sale price $31.61 USDRegular price $37.19 USD
      Regular price $31.61 USD
      Wichard Captive Pin Long D Shackle - Diameter 5mm - 3/16" [1412W]

      Wichard Captive Pin Long D Shackle - Diameter 5mm - 3/16" [1412W]

      Item # 1412W-WICUPC 3587790014129
      $31.61$37.19

      In stock, ready to ship

      • Secure checkout
      • Genuine brand-name marine gear
      • Need help choosing? Call 786-208-7519
      Need it installed?

      Our mobile marine technicians can install it at your dock across South Florida.

      Book Service
      Description

      Captive Pin Long D Shackle - Diameter 5mm - 3/16"

      Features:

      • Captive pin long "D" shackle forged in grade 316L stainless steel
      • The pin is connected to the body at all times even when opened
      • The pin is locked into one of the indentations
      • No risks of loosening due to vibrations
      • Outstanding working and breaking loads

      Applications:

      • Standard applications of shackle requiring more length
      • Attachment applications: blocks, head...

      Specifications:

      • Materials 316 stainless steel grade
      • Working load (lb) 1050
      • WLL (lb) 660
      • Breaking load (lb) 3300
      • Weight (lb) 0.053

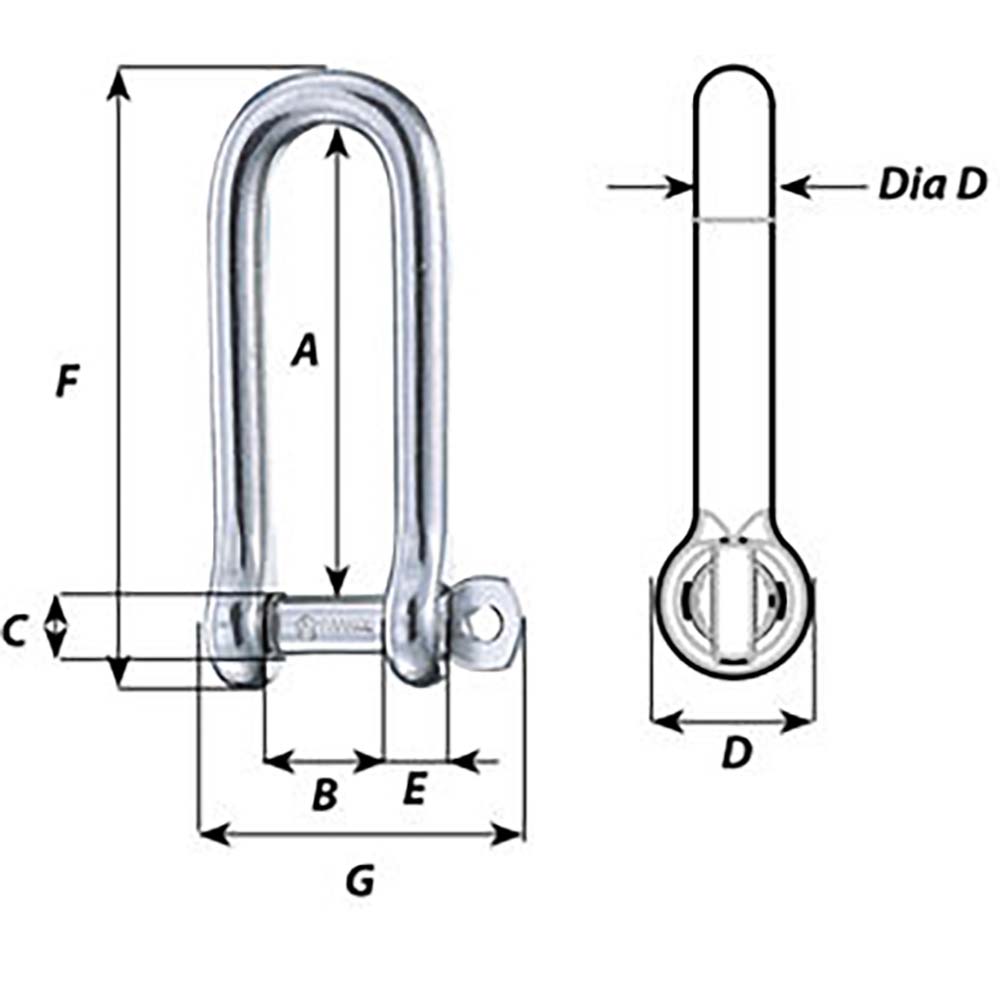

      Dimensions (see 2nd image):

      • A (inch) 1-17/32"
      • B (inch) 25/64"
      • C (inch) 15/64"
      • D (inch) 7/16"
      • D diameter (inch) 13/64"
      • E (inch) 13/64"
      • F (inch) 2-3/64"
      • G (inch) 1-1/16"
      Specifications
      BrandWichard Marine
      Item #1412W-WIC
      UPC3587790014129
      Product typeShackles/Rings/Pins
      Shipping weight0.05 lb
