Wichard Marine
Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32" [1411W]
Art: 1411W-WIC
Description
Captive Pin Long D Shackle - Diameter 4mm - 5/32"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 440
- Breaking load (lb) 2200
- Weight (lb) 0.026

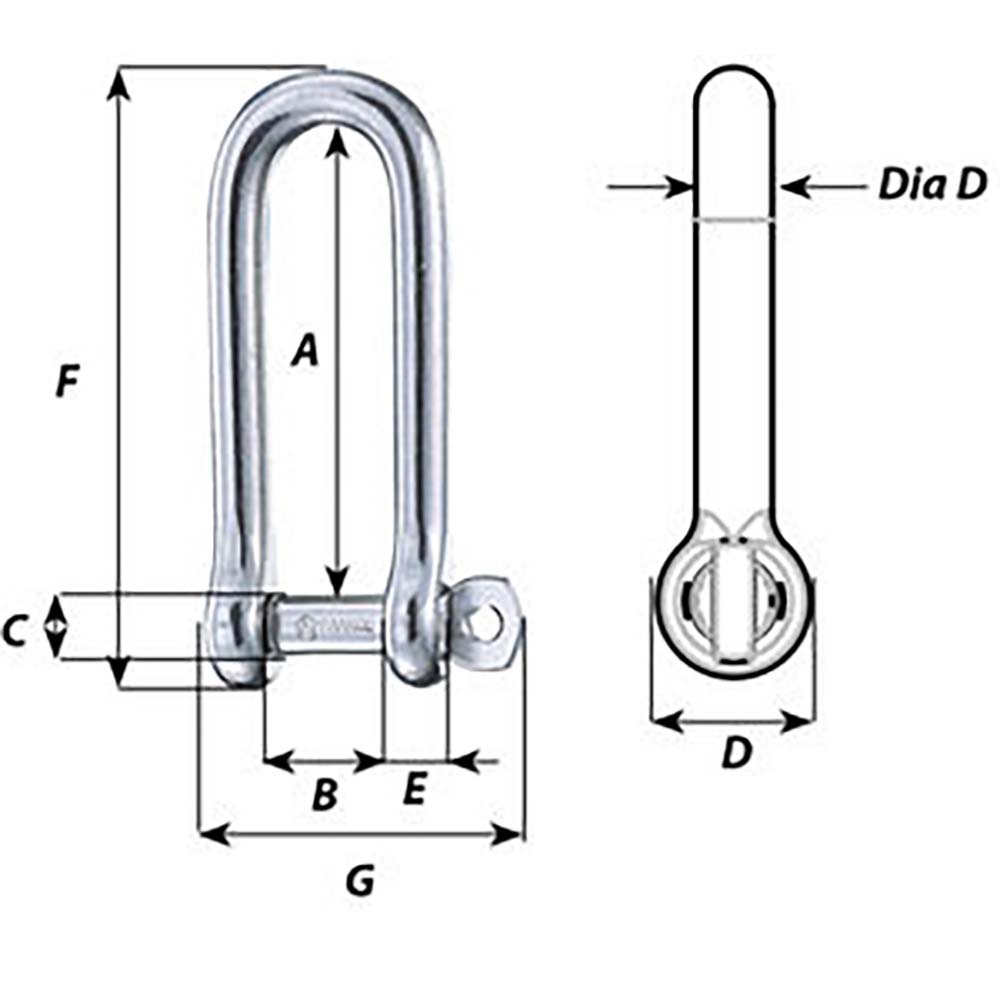

Dimensions (see 2nd image):
- A (inch) 1-7/32"
- B (inch) 5/16"
- C (inch) 13/64"
- D (inch) 23/64"
- D diameter (inch) 5/32"
- E (inch) 5/32"
- F (inch) 1-39/64"
- G (inch) 55/64"
![Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32" [1411W]](http://www.marinepartsandelectronics.com/cdn/shop/files/93115XL.jpg?v=1732450285&width=1000)
Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32" [1411W]
$27.02$31.79
- Secure checkout
- Genuine brand-name marine gear
- Need help choosing? Call 786-208-7519
Need it installed?
Book ServiceOur mobile marine technicians can install it at your dock across South Florida.
Description
Captive Pin Long D Shackle - Diameter 4mm - 5/32"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 440
- Breaking load (lb) 2200
- Weight (lb) 0.026
Dimensions (see 2nd image):
- A (inch) 1-7/32"
- B (inch) 5/16"
- C (inch) 13/64"
- D (inch) 23/64"
- D diameter (inch) 5/32"
- E (inch) 5/32"
- F (inch) 1-39/64"
- G (inch) 55/64"
Specifications
| Brand | Wichard Marine |
|---|---|
| Item # | 1411W-WIC |
| UPC | 768536014112 |
| Product type | Shackles/Rings/Pins |
| Shipping weight | 0.2 lb |
