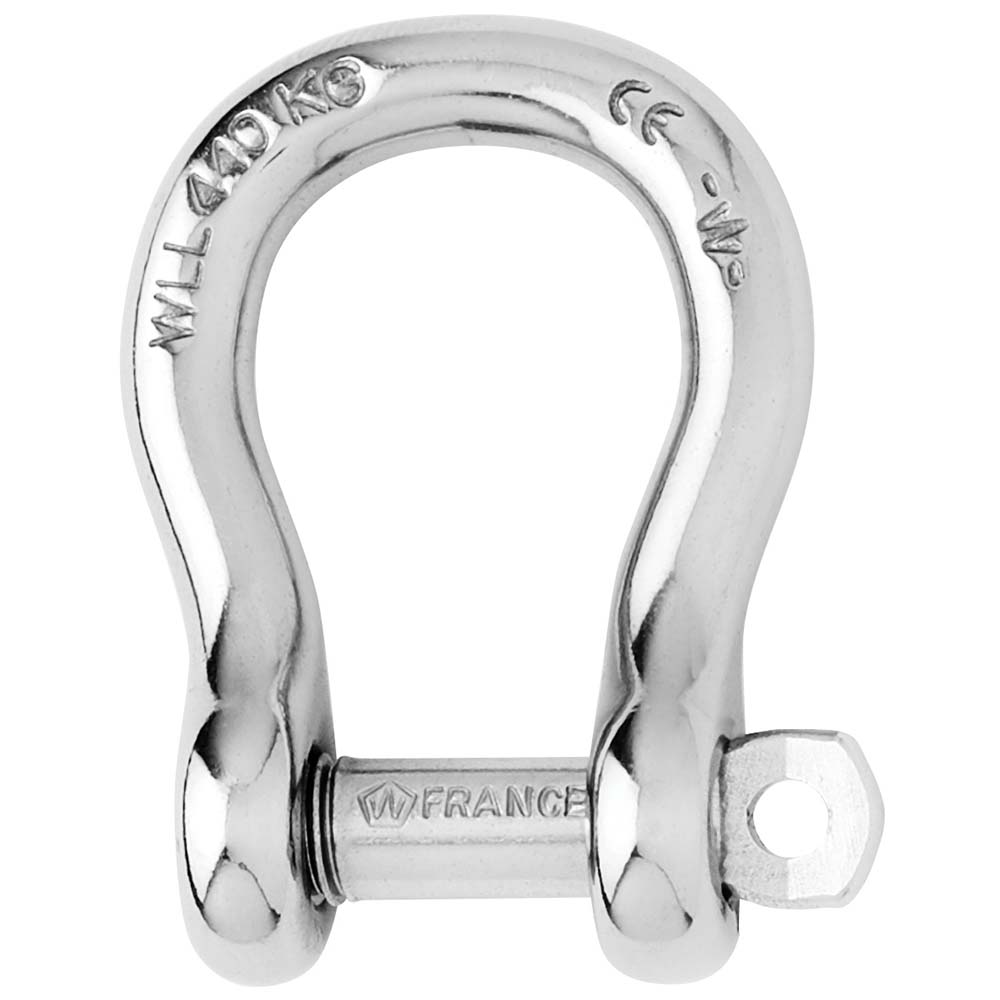

Wichard Captive Pin Bow Shackle - Diameter 4mm - 5/32" [1441W]
Art: 1441W-WIC
Description
Captive Pin Bow Shackle - Diameter 4mm - 5/32"
Features:
- Captive pin bow shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Single-handed operation for more safety
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 440
- Breaking load (lb) 2200
- Weight (lb) 0.022

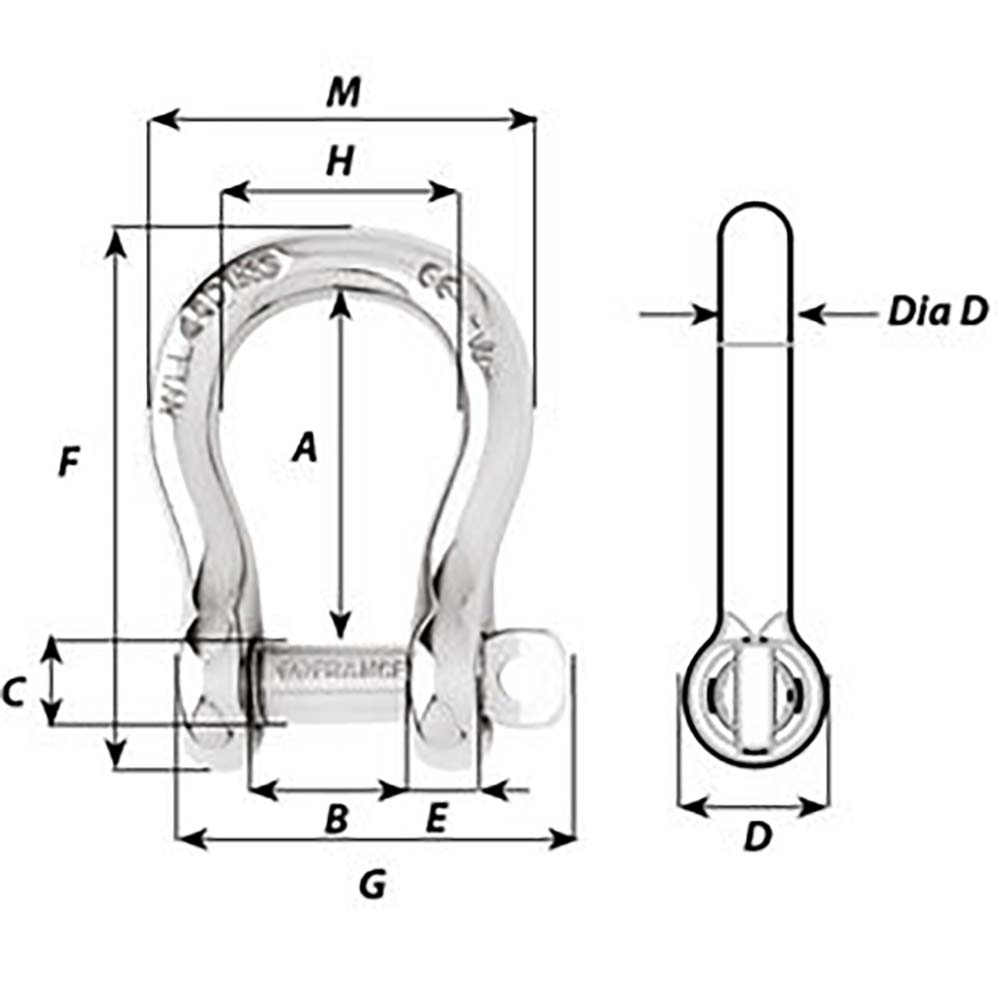

Dimensions (see 2nd image):
- A (inch) 45/64"
- B (inch) 5/16"
- C (inch) 13/64"
- D (inch) 23/64"
- D diameter (inch) 5/32"
- E (inch) 5/32"
- M (inch) 53/64"
![Wichard Captive Pin Bow Shackle - Diameter 4mm - 5/32" [1441W]](http://www.marinepartsandelectronics.com/cdn/shop/files/93126XL.jpg?v=1732450390&width=1000)
Wichard Captive Pin Bow Shackle - Diameter 4mm - 5/32" [1441W]
$25.08$29.50
- Secure checkout
- Genuine brand-name marine gear
- Need help choosing? Call 786-208-7519
Need it installed?
Book ServiceOur mobile marine technicians can install it at your dock across South Florida.
Description
Captive Pin Bow Shackle - Diameter 4mm - 5/32"
Features:
- Captive pin bow shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Single-handed operation for more safety
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 440
- Breaking load (lb) 2200
- Weight (lb) 0.022
Dimensions (see 2nd image):
- A (inch) 45/64"
- B (inch) 5/16"
- C (inch) 13/64"
- D (inch) 23/64"
- D diameter (inch) 5/32"
- E (inch) 5/32"
- M (inch) 53/64"
Specifications
| Brand | Wichard Marine |
|---|---|
| Item # | 1441W-WIC |
| UPC | 3587790014419 |
| Product type | Shackles/Rings/Pins |
| Shipping weight | 0.05 lb |
