- Product label: Sold out
Tigress
Tigress XD Bay Series Top Mount - Pair [88870]
Art: 88870-TIG
Description
XD Bay Series Top Mount - Pair
Features:
- For use on sport fishing boats up to 40 feet
- Accepts all Tigress XD 1-1/8” butt diameter Outriggers
- 19 upper-arm angle/locking (@10 deg.) using Tigress XD 316L Stainless Steel tooth locking design with horizontal stops for Trailering and bridges
- Large 3-lobe UV ergonomic knob for changing and locking the outriggers’ elevation
- 24 adjustable/locking system positions (15-degree increments) featuring Tigress XD 316L Stainless Steel locking design with HD Spring return
- User-friendly Side Operating Lever
- Large ‘XD’ Aluminum 14.5mm thick baseplate with four corner mounting
- 5/16” through x 3.000” x 5.000” 4-bolt pattern
- Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
- Extreme-duty 316L Stainless Steel and anodized aluminum and fully sealed construction with UV protection
- Ambidextrous mounting option to accommodate the side that the tri-lobe knob is positioned on
- 3-Year Limited Warranty
*Two top mounts included
![Tigress XD Bay Series Top Mount - Pair [88870]](http://www.marinepartsandelectronics.com/cdn/shop/files/92242XL.jpg?v=1732447316&width=1000)

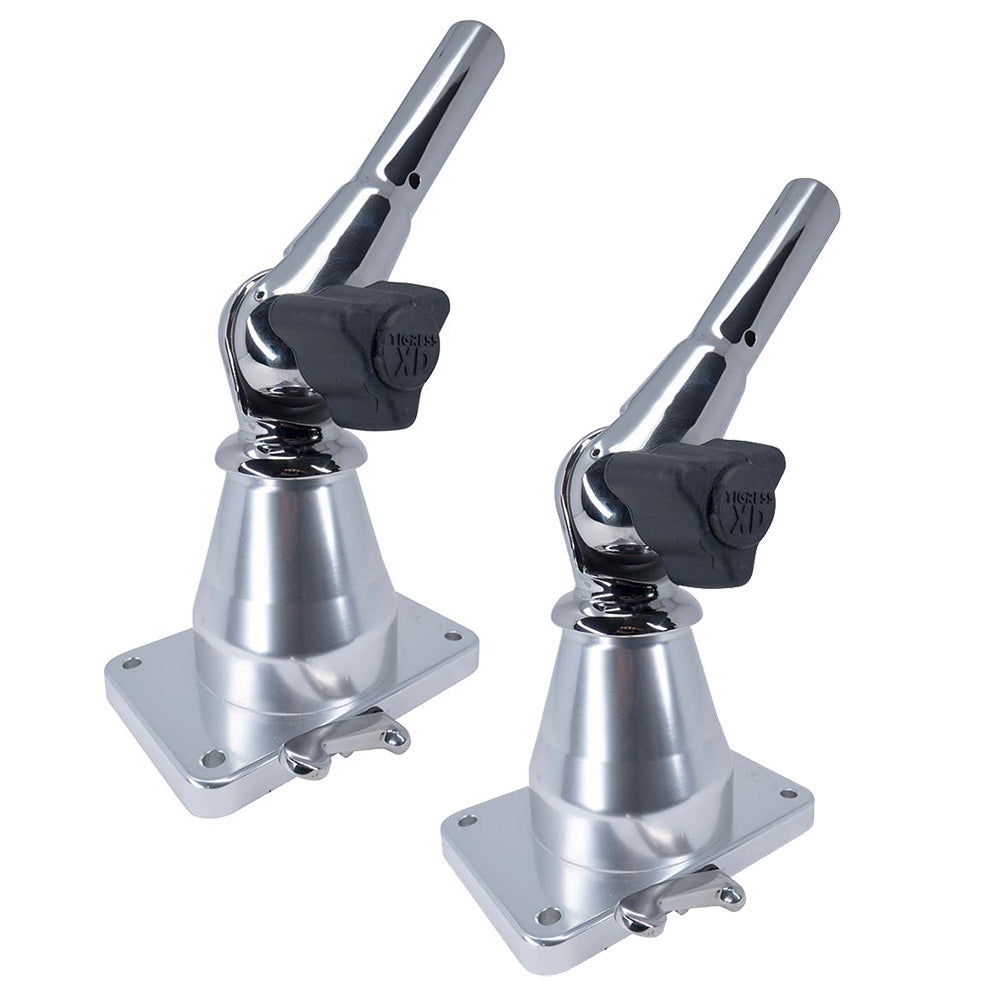

Tigress XD Bay Series Top Mount - Pair [88870]
$949.99
- Secure checkout
- Genuine brand-name marine gear
- Need help choosing? Call 786-208-7519
Need it installed?
Book ServiceOur mobile marine technicians can install it at your dock across South Florida.
Description
XD Bay Series Top Mount - Pair
Features:
- For use on sport fishing boats up to 40 feet
- Accepts all Tigress XD 1-1/8” butt diameter Outriggers
- 19 upper-arm angle/locking (@10 deg.) using Tigress XD 316L Stainless Steel tooth locking design with horizontal stops for Trailering and bridges
- Large 3-lobe UV ergonomic knob for changing and locking the outriggers’ elevation
- 24 adjustable/locking system positions (15-degree increments) featuring Tigress XD 316L Stainless Steel locking design with HD Spring return
- User-friendly Side Operating Lever
- Large ‘XD’ Aluminum 14.5mm thick baseplate with four corner mounting
- 5/16” through x 3.000” x 5.000” 4-bolt pattern
- Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
- Extreme-duty 316L Stainless Steel and anodized aluminum and fully sealed construction with UV protection
- Ambidextrous mounting option to accommodate the side that the tri-lobe knob is positioned on
- 3-Year Limited Warranty
*Two top mounts included
Specifications
| Brand | Tigress |
|---|---|
| Item # | 88870-TIG |
| UPC | 661033888708 |
| Product type | Outrigger Accessories |
| Shipping weight | 17.4 lb |
