Shadow-Caster LED Lighting

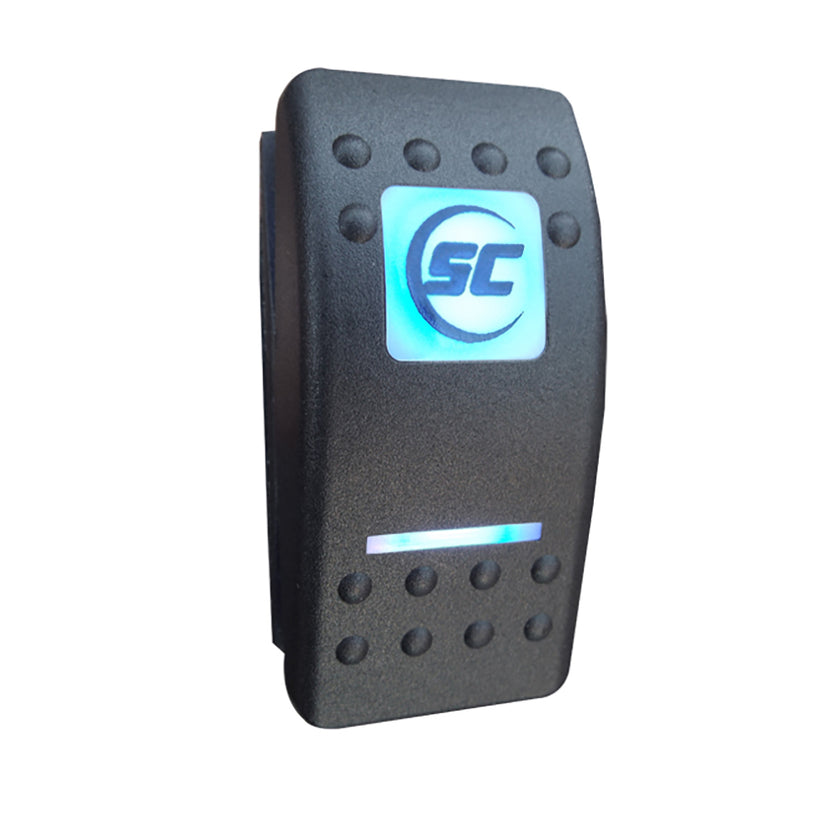

Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch [SCM-SWITCH-O/O/M]
Art: SCM-SWITCH-O O M-SHA
![Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch [SCM-SWITCH-O/O/M]](http://www.marinepartsandelectronics.com/cdn/shop/files/88257XL_840x.jpg?v=1732438154)
![Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch [SCM-SWITCH-O/O/M]](http://www.marinepartsandelectronics.com/cdn/shop/files/88257XL_1920x.jpg?v=1732438154)
Description
3-Position On/Off/Momentary Marine LED Lighting Switch
On / Off / Momentary Marine LED Lighting Switch for two-color and multi-color lighting – simply toggle power to set color choice. For use with fishing boats, pontoon boats, sports boats, and yachts.
Features:
- Power On/Off
- Color change
- Multiple fade mode changes
Specifications:
- Off/On/Momentary
- LED Voltage Rating: 12V (Add 600ohm resistor between pin 7 and ground for 24V operation)
- LED Color: Blue x 2
- Terminals: Brass or copper/silver plate 1/4” (6.3mm) quick connect
- Sealing IP66/68, for above-panel components of actual switch only
- Operating Temp. -40°C to +85°C
- Contact Rating: 20 amps, 4-14VDC and 15 amps, 15-28VDC
- Switch and actuator color: Black
Note: Use with SCM-SNLC single-zone lighting controller to access full ShadowNET® lighting control functionality.
