Ronstan

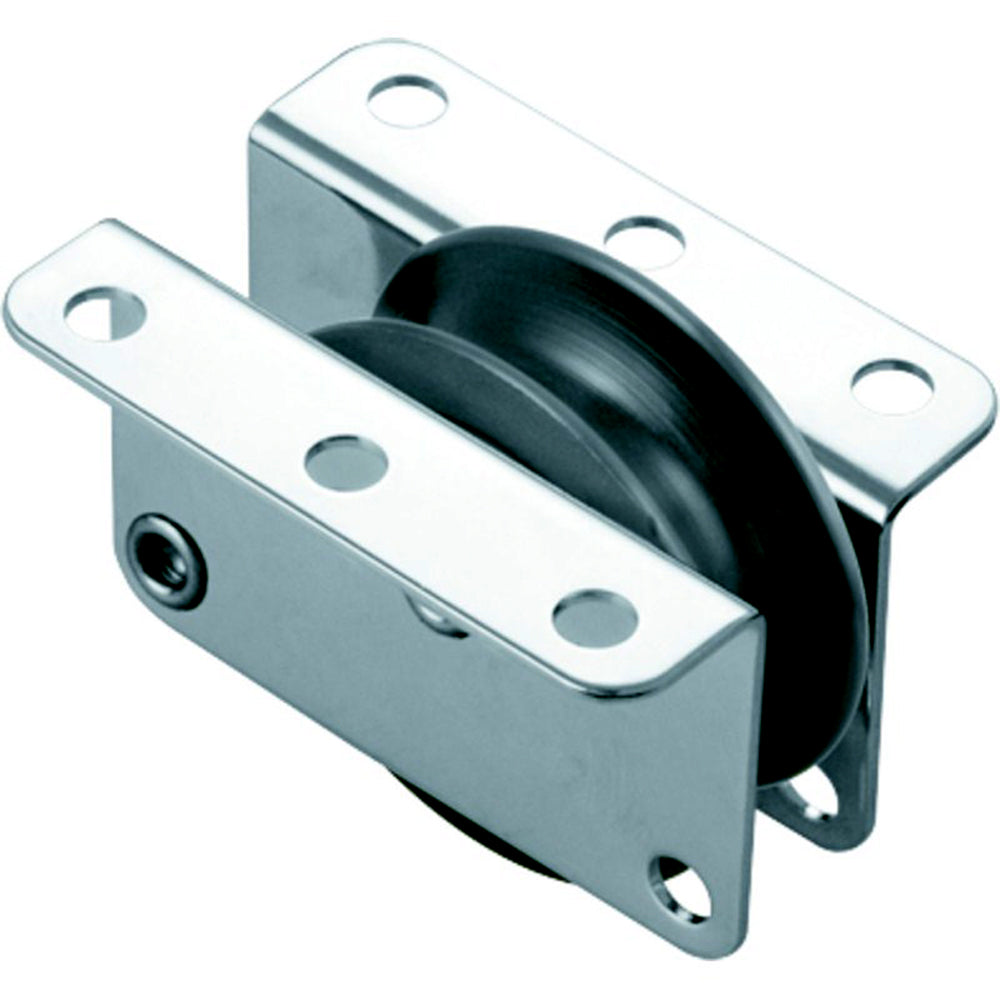

Ronstan Series 30 High Load Exit Box f/Single Rope or Wire [RF31712]
![Ronstan Series 30 High Load Exit Box f/Single Rope or Wire [RF31712]](http://www.marinepartsandelectronics.com/cdn/shop/files/55172XL_840x.jpg?v=1732353376)
![Ronstan Series 30 High Load Exit Box f/Single Rope or Wire [RF31712]](http://www.marinepartsandelectronics.com/cdn/shop/files/55172XL_1920x.jpg?v=1732353376)
Description
Series 30 High Load Exit Box for Single Rope or Wire
Plain bearing sheaves are ideal for halyards and other applications where high static loads are likely to be encountered
Applications:
- Ideal applications where lines (rope or wire) need to be led through decks, bulkheads or spars minimizing friction and chafing
Materials:
- Nylatron®l sheave
- Grade 316 Stainless Steel cheeks
Specifications:
Sheave Ø: 30.0mm(1-3/16")
Max. Rope Ø:8.0mm(5/16")
Max. Cable Ø: 4.0mm(5/32")
B.L.: 800kg(1,760lbs)
Specifications:
- Color: Stainless
- Box Dimensions: 1"H x 2"W x 4"L WT: 0.1 lbs
- UPC: 9316800335114
