Maxwell

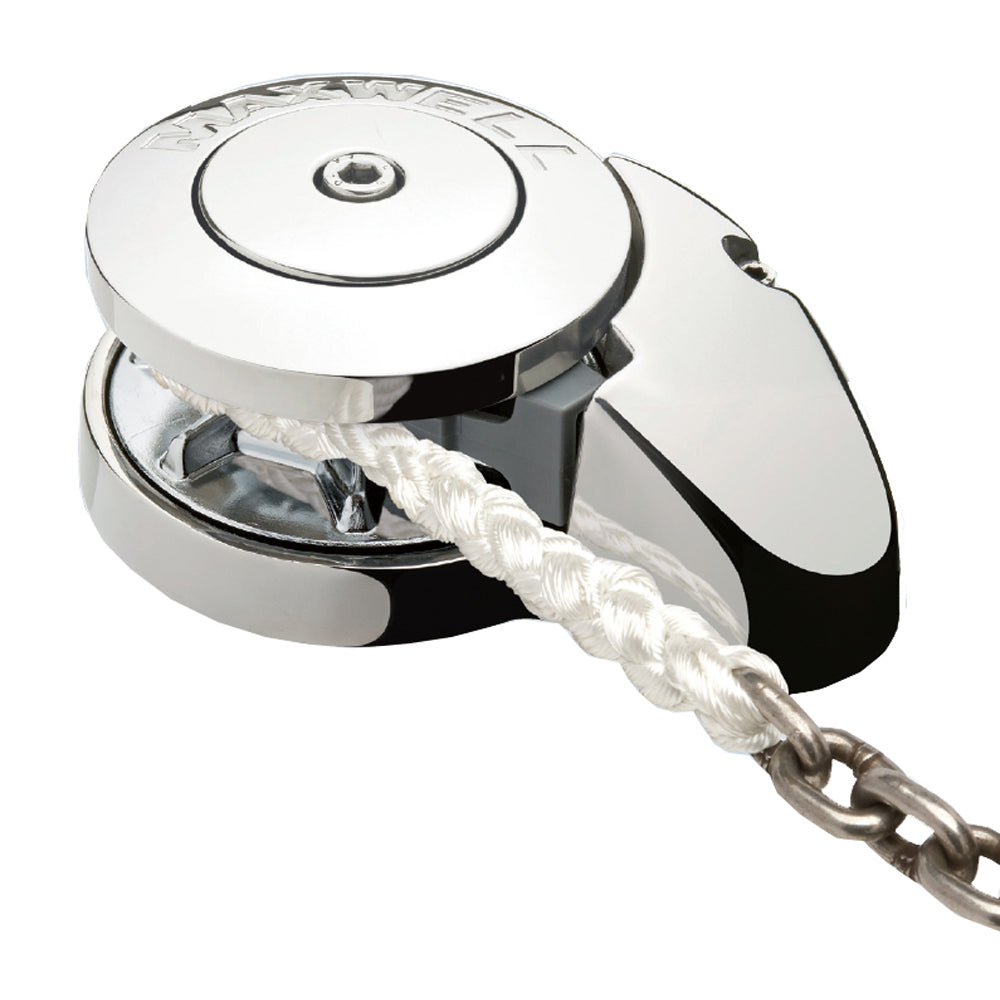

Maxwell RC6 12V Windlass - 500W f/1/4 Chain to 1/2 Rope [RC612V]
Art: RC612V-MAX
![Maxwell RC6 12V Windlass - 500W f/1/4 Chain to 1/2 Rope [RC612V]](http://www.marinepartsandelectronics.com/cdn/shop/files/37378XL_840x.jpg?v=1732328858)
![Maxwell RC6 12V Windlass - 500W f/1/4 Chain to 1/2 Rope [RC612V]](http://www.marinepartsandelectronics.com/cdn/shop/files/37378XL_1920x.jpg?v=1732328858)
Description
- The RC6 utilizes 6mm/7mm (1/4") chain spliced to 12mm (1/2") three strand or 8-plait rope.
- Maximum Pull: 660lbs.
- Providing most of the features of the larger RC8, the RC6 has been designed with the smaller, trailer boat market in mind.
- The in-line, vertical gearbox and motor means quick and easy installation by either the boat yard or the DIY aftermarket customer.
- An inexpensive, high performance and great looking windlass: the RC6 is built for durability and years of trouble free use.
- The RC6 is available only as a low profile unit (no optional capstan drum).
Kits include:windlass , an on/off breaker panel, a reversing soleniod, an up/down panel switch and a handle.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- Chain - Diameter (Inches): 1/4"
- Rope Diameter (Inches): 1/2"
- Vertical/Horizontal: Vertical
- Box Dimensions: 10"H x 15"W x 15"L WT: 25 lbs
- UPC: 1000000004816
Brochure (pdf)
