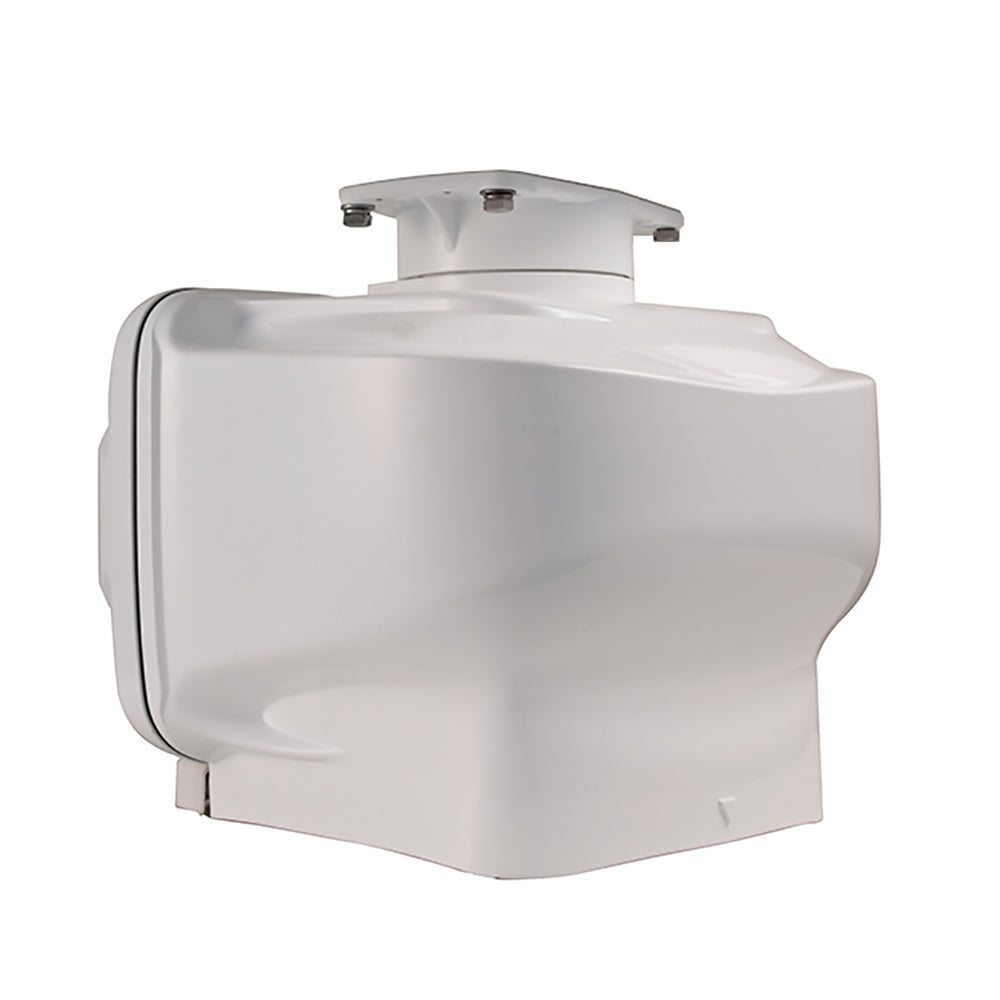

6kW UHD Digital Radar  - Less Antenna and Cable

DRS6AX "X-Class", a whole new class of Radar!

Pushing the boundaries of what is possible with conventional Radar technology, DRS6AX "X-Class" marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS6AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.

The redesigned pedestal unit is 20% lighter than previous DRS6AX model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS6AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Features:

• 6kW Power Output
• Enhanced target detection, both short and long range
• Minimum detection range of just 20M
• Fast Target Tracking™
• Bird Mode
• Pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
• No PSU required, decreasing total costs
• Easy installation without the need to open pedestal unit
• New smart-connector cable
• Choice of 3.5', 4' or 6' Antenna
• Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
• The DRS6AX is a 24V system; a converter will be required for use with 12V power systems
• Requires a signal/power cable
•


Specifications:

• Power - Output: 6kW
• Box Dimensions: 16"H x 17"W x 19"L WT: 22 lbs
• UPC: 611679364463
