Faria Beede Instruments
Faria Euro Black 2" Oil Pressure Gauge - Metric (5 Bar) [12805]
Description

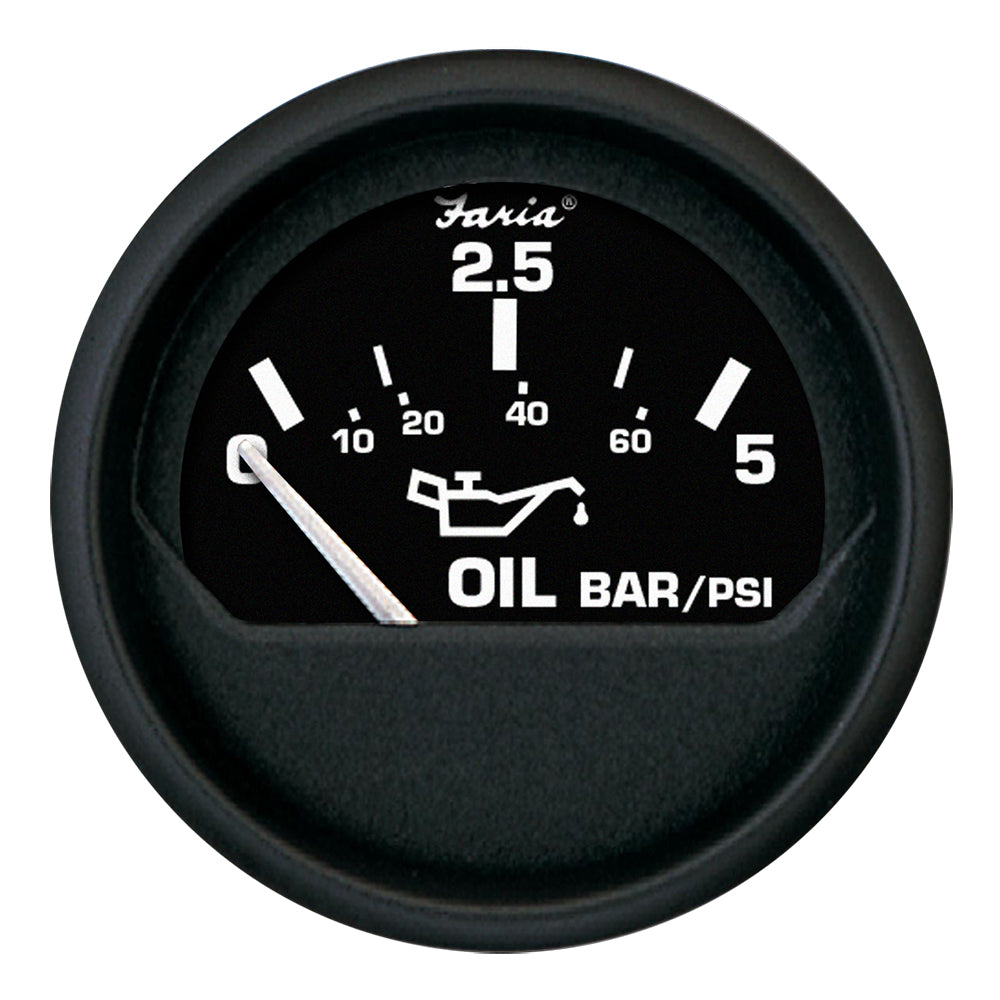

Euro Black 2" Oil Pressure Gauge - Metric (5 Bar)
Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.
A pressure gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...
As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the change in pressure.
2" - Hole size: 2.0625" (53mm)
Specifications:
- Anti-scratch glass lens
- 12 VDC negative ground
- Can be adapted for 24 VDC systems
- Dual Scale - Imperial or Metric
Factory P/N GP9511
*Sold as an Individual
**Gauge Cover not Included
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- Voltage - Input Range (Volts): 12/24 V
- Series: Euro Black
- Gauge Type: Oil Pressure
- Gauge Size: 2"
- Box Set: No
- Box Dimensions: 4"H x 4"W x 4"L WT: 0.3 lbs
- UPC: 759266128057
