      Description

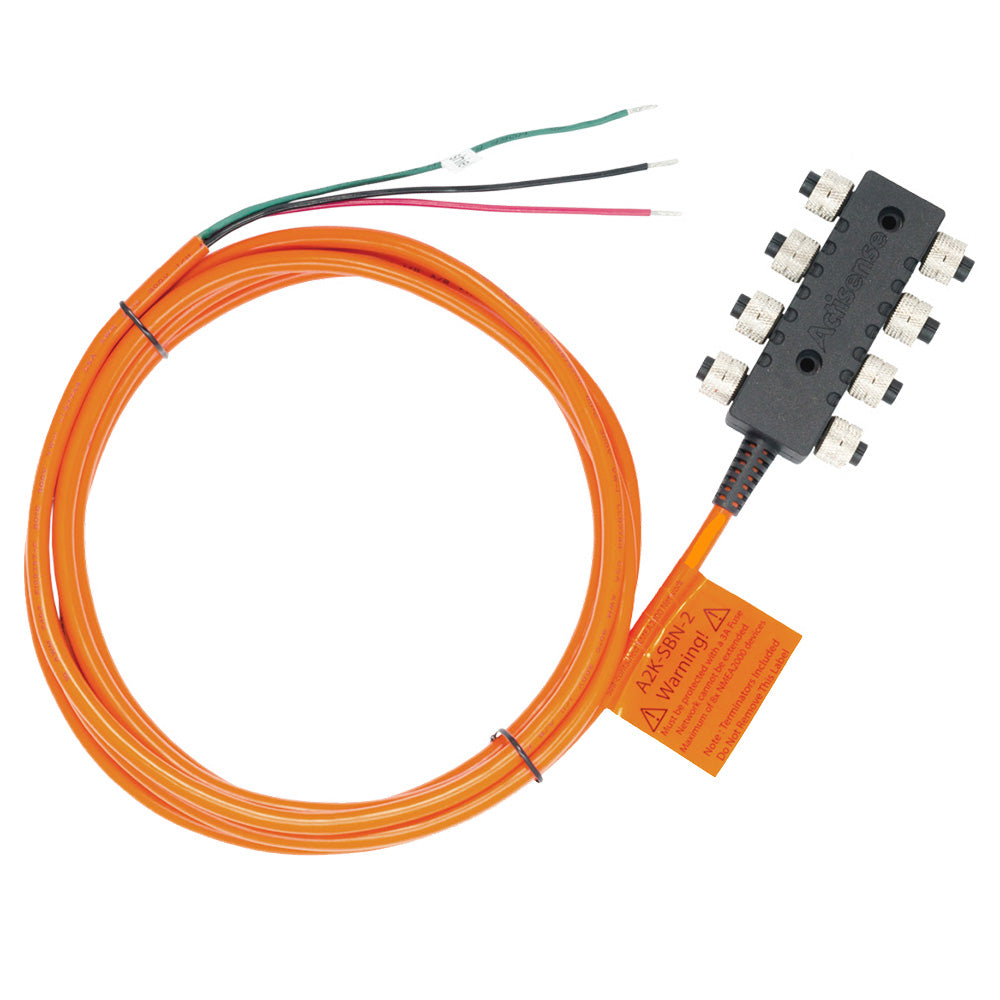

      Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power Feed

      Installing small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN) from Actisense.

      The equivalent of eight T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.

      Once the attached 3 meter cable is connected to the boats power supply, an NMEA 2000 network for up to eight devices is ready to use, taking ‘plug & play’ to the next level.

      Features:

      • Self-contained NMEA 2000 Network
      • Integrated Termination Resistors
      • 8x NMEA 2000 drops
      • Ruggedized, flame retardant over-molded housing
      • Metal coupling nuts
      • Integrated EMI Shield
      • Orange, UL Rated, 3-meter power cable
      • Color coded wires, stripped and tinned
      • Low cost, quick to install, and provides an easy way to connect multiple NMEA 2000 devices
      • Simple installation, fewer components, more reliable, lower cost
      • Accommodates the vast majority of compact NMEA 2000 networks
      • Suitable for wet and harsh conditions- highly desirable in marine environments
      • Reliable, long lasting connections
      • Less likely to be susceptible to interference
      • UL rated cable provide peace of mind. Color easily differentiates the power cable form drop cables
      • Quick installation, no special tools required

      Technical Specifications:

      Electrical

      • Rated Current - 3A
      • Rated Voltage - 60 V (AC/DC)
      • Internal Termination Resistors - 2 x 120Ω 250mW

      Mechanical

      • Female Contact - Phosphor bronze, gold plated
      • Contact Carrier - PA66 (30% Glass filled), black
      • Contact Polarization - Standard M12 – “A” – polarization
      • Mating Thread - M12
      • Screw Cap - Brass, nickel plated
      • O-Ring Seal - Rubber, black
      • Housing - TPU (Halogen Free) over Epoxy filled PBT housing
      • Flammability rating - UL94 V-0
      • Internal Housing Shield - Copper foil
      • Cable Jacket Material - 0.8mm Nom. PVC, orange
      • Cable Outer Diameter - 6.8mm
      • Cable Length - 3m
      • Wire Length - 150mm (10mm stripped and tinned)
      • Wire Jacket - PVC, Red & Black
      • Wires - 16 AWG (stripped and tinned)
      • Drain - 18 AWG (34 strand tinned copper)
      • Cable Shield - Al-mylar
      • Weight - 410g

      Approvals and Certifications

      • Protection - IP67 (when mated)
      • Operating Temperature - -25°C to +70°C
      • Storage Temperature - -40°C to +85°C
      This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

      Specifications:

      • Data Interface: NMEA 2000
      • Cable Length (Meters): 3m
      • Box Dimensions: 1.00"H x 6.00"W x 7.50"L WT: 0.9 lbs
      • UPC: 5060998710188

      Owner's Manual (pdf)
      Brochure (pdf)
      Specifications
      BrandActisense
      Item #A2K-SBN-2-ACT
      UPC5060998710188
      Product typeNMEA Cables & Sensors
      Shipping weight0.9 lb
