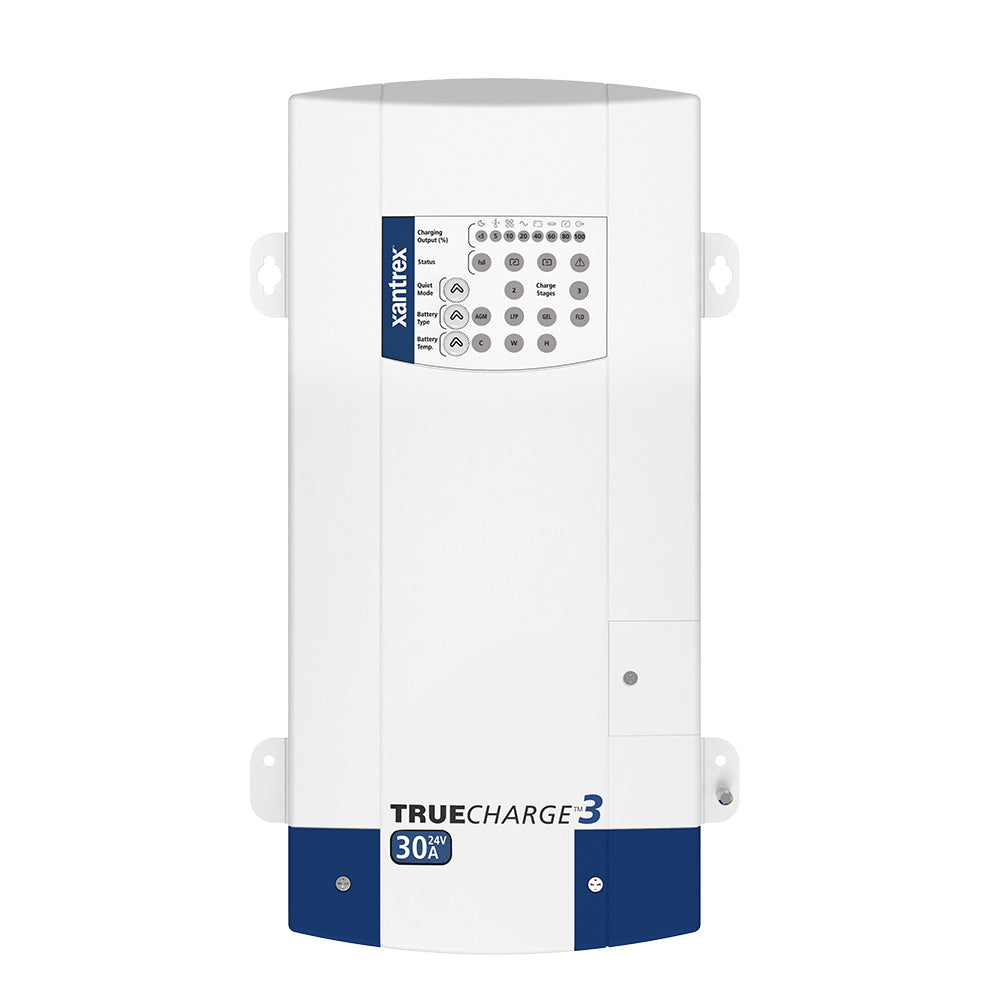

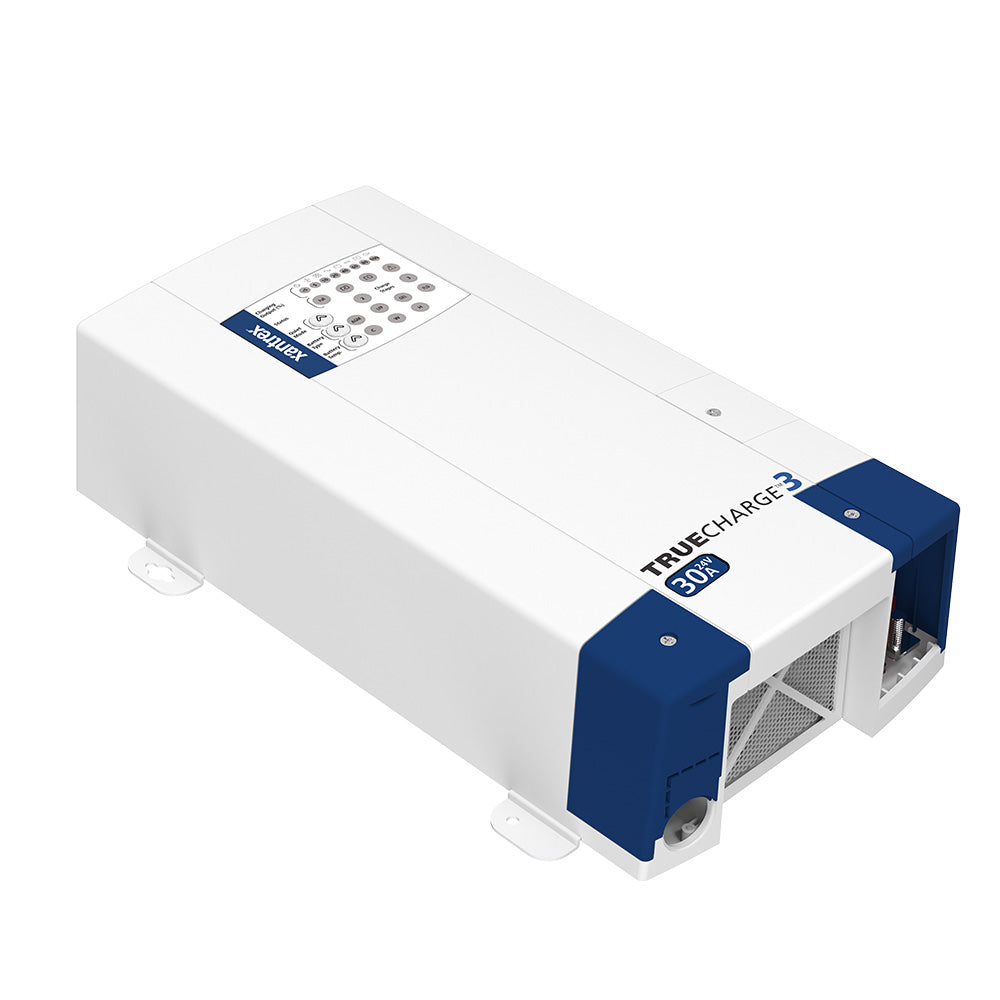

TRUECHARGE™3 30A 3 Bank Battery Charger - 24V

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, TRUEcharge3 battery chargers feature low electrical interference and efficient power factor-corrected multistage charging. Thanks to their inherent drip-proof design characteristics, the TRUEcharge3 Chargers can be mounted in multiple positions. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.

Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be enhanced with an optional remote panel. Each model comes with built-in protection against surges and spikes on the AC power line.

Features:

• Microprocessor-controlled, multistage charging algorithms
• Settings for two and three-stage charging
• Battery-equalization feature
• Settings for flooded, gel, AGM, or lithium-ion batteries
• Equipped with parallel stacking (remote panel required)
• Ability to charge batteries drained to extremely low voltage
• Added quiet mode

Protection Features:

• Reverse-battery polarity protection
• Drip-proof design
• DC over-voltage protection
• Over-temperature protection
• Circuit breaker protection

Three-Stage Charging

Multistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages:

• Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate
• Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate
• Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate

Power Factor Corrected (PFC) Charging

Less shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.

Electrical Specifications (@ 25 degrees C unless otherwise noted):

• Output Current (nominal): 30 A
• Output Voltage (nominal, depending on settings): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc; 32 V
• DC Output Connections: Three
• AC Input Voltage: 90–265 Vac; 47–63 Hz 120 Vac, 230 Vac, 240 Vac nominal
• Temperature Compensation: Three settings
• Charger Efficiency: > 80%
• Battery Type: Gel, Flooded, AGM, LiFePO4
• Minimum Recommended Battery Bank Size: 60 Ah

General Specifications:

• Operating Temperature Range: 0–60°C (32–140°F)
• Storage Temperature -40–80°C (-40–176°F)
• Battery Connection: Three positive terminals and one negative terminal
• Dimensions (H x W x L): 90 x 170 x 340 mm (3.5 x 6.7 x 13.4”)
• Weight 4.5 kg (9.9 lb)

 Regulatory Approvals

Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.

Specifications:

• Charger Input - Voltage: 120/240v
• Charger Output - Amps: 30a
• Charger Output Voltage: 24v
• Charging Banks: 3
• Portable: No
• Box Dimensions: 6"H x 11"W x 17"L WT: 9 lbs
• UPC: 715535920975
