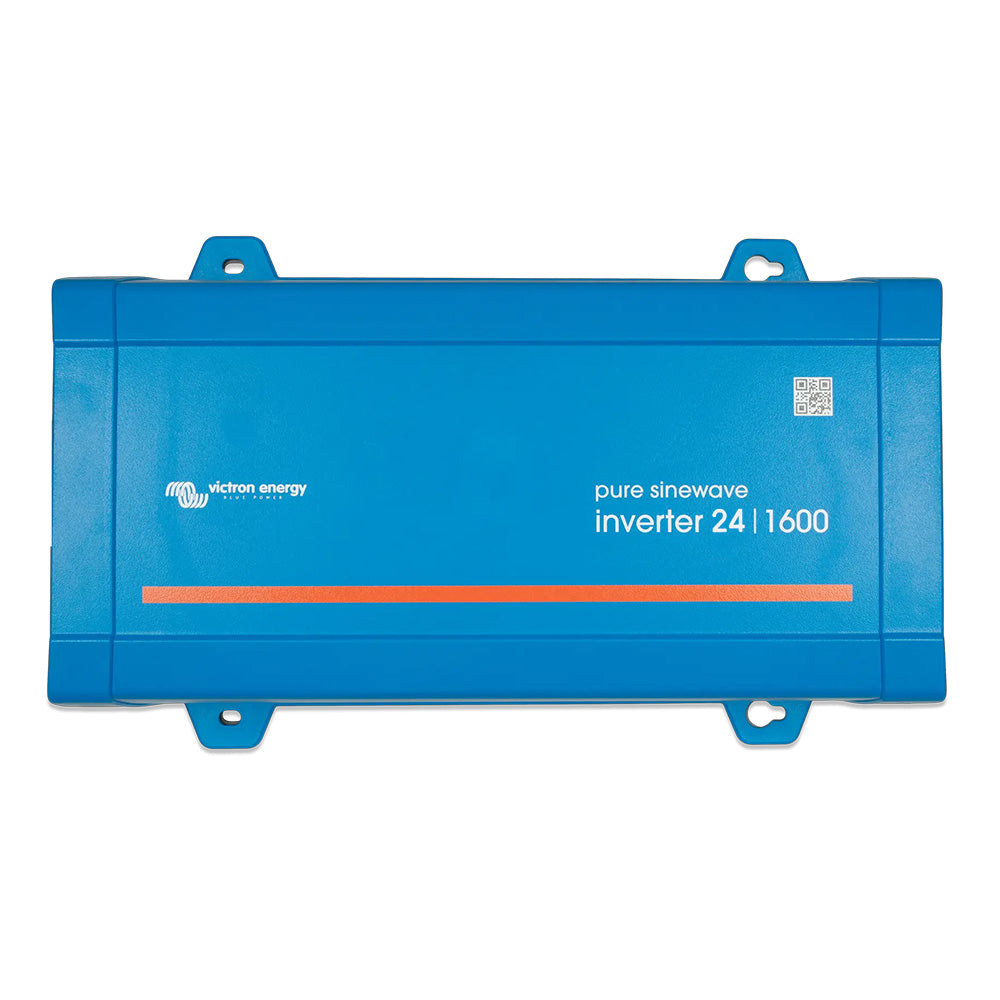

Inverter 24/1600 120V VE.Direct NEMA 5-15R

The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field-tested Phoenix inverter platform, it now comes with a slimmer design and a full metal casing. Models are available in 1600VA, 2000VA, 3000VA and 5000VA for 12, 24 or 48V systems.It's powerful enough to supply most common plug-in appliances in your car, boat, caravan, or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency, and a high-quality sinewave.

Installation is simpler than ever before, with terminals now more accessible for the installer, enabling a more professional finish.

Bluetooth is built in and makes setting up your high-power inverter easier than ever before.

Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode, and more, all from within VictronConnect.

Features:

• 1600 VA continuous output at 25 Deg C
• 1200 Watts continuous output at 25 Deg C
• Peak Power 2200 Watts
• Max efficiency 87%
• Zero load power 12 Watts
• Weight 20 lbs
• Can accept up to 1 awg DC Power Wire

Specifications:

• AC Connection Type: Outlet

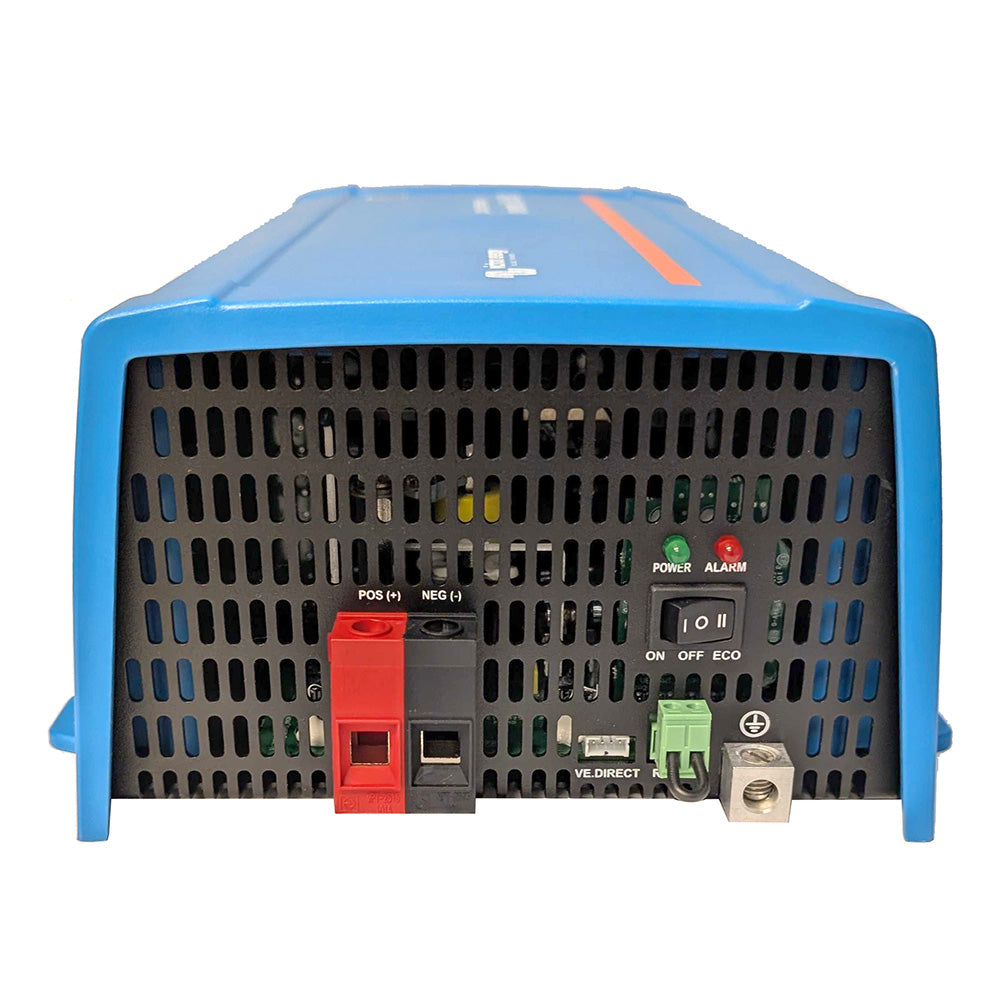

• DC Connection Type: Hardwire
• GFCI: Optional
• Inverter Cont. Output Wattage: 1200W
• Inverter Input Voltage: 24VDC
• Inverter Output Voltage: 120VAC
• Inverter Surge Rating: 2200W

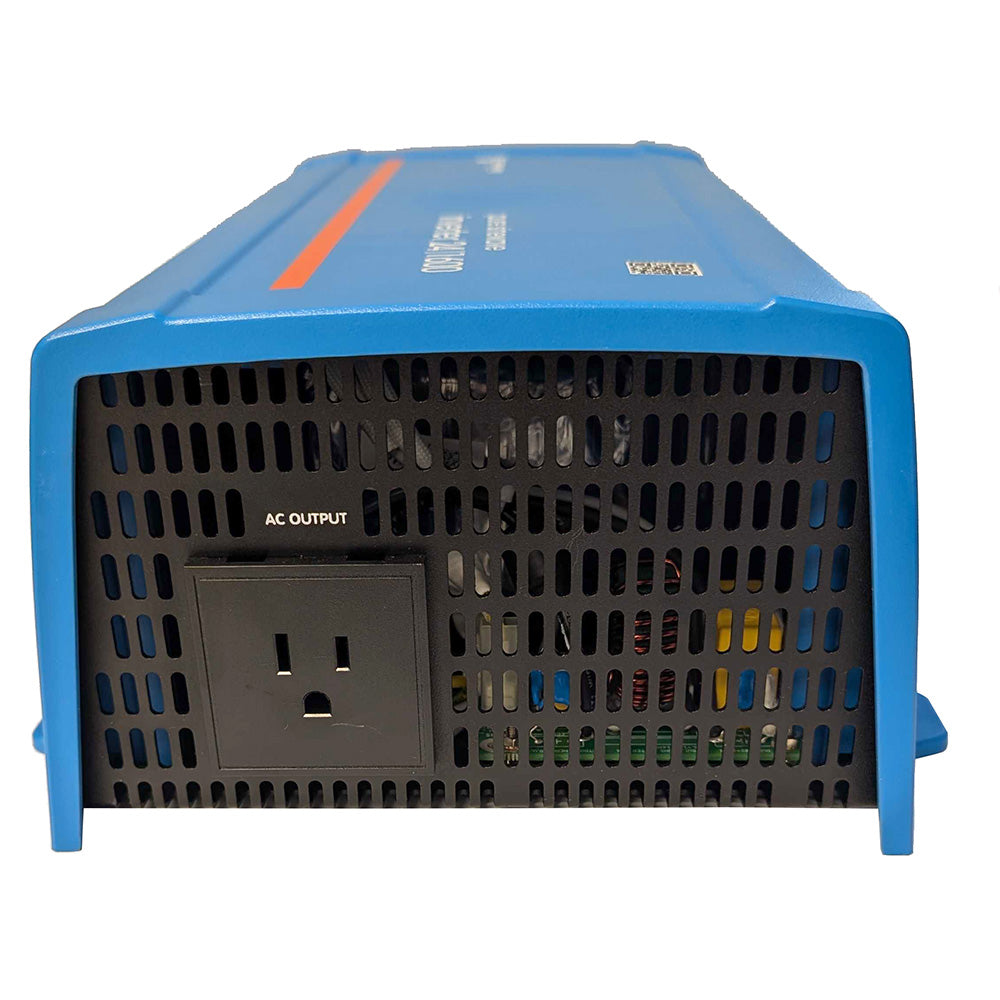

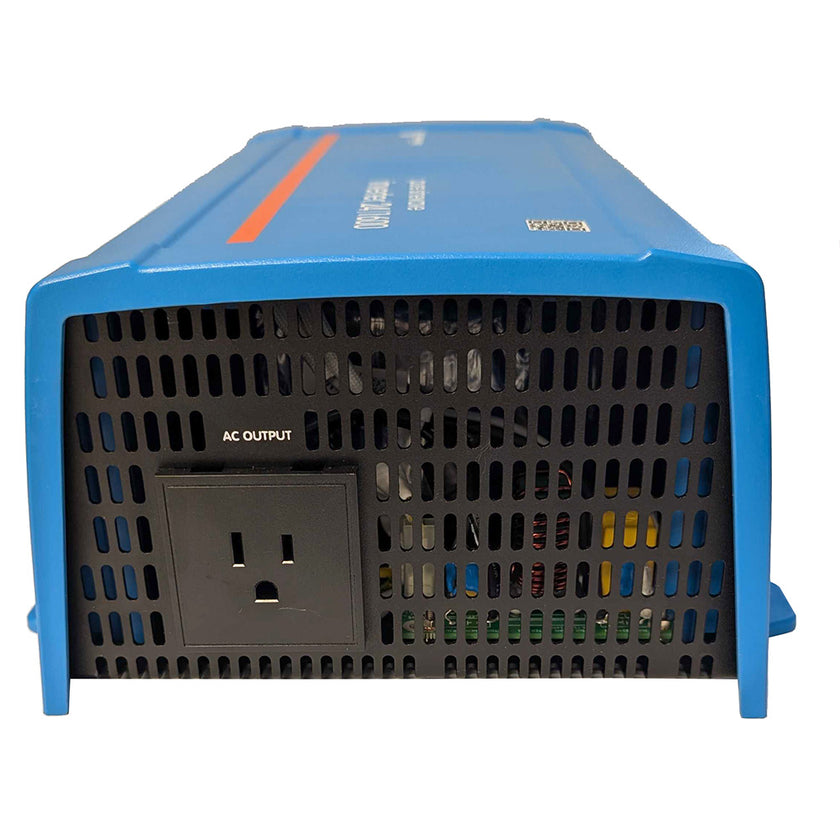

• Outlet Qty: 1 NEMA 5-15R
• Waveform: True Sine Wave
• Box Dimensions: 8"H x 12"W x 17"L WT: 19.09 lbs
• UPC: 8719076071945
