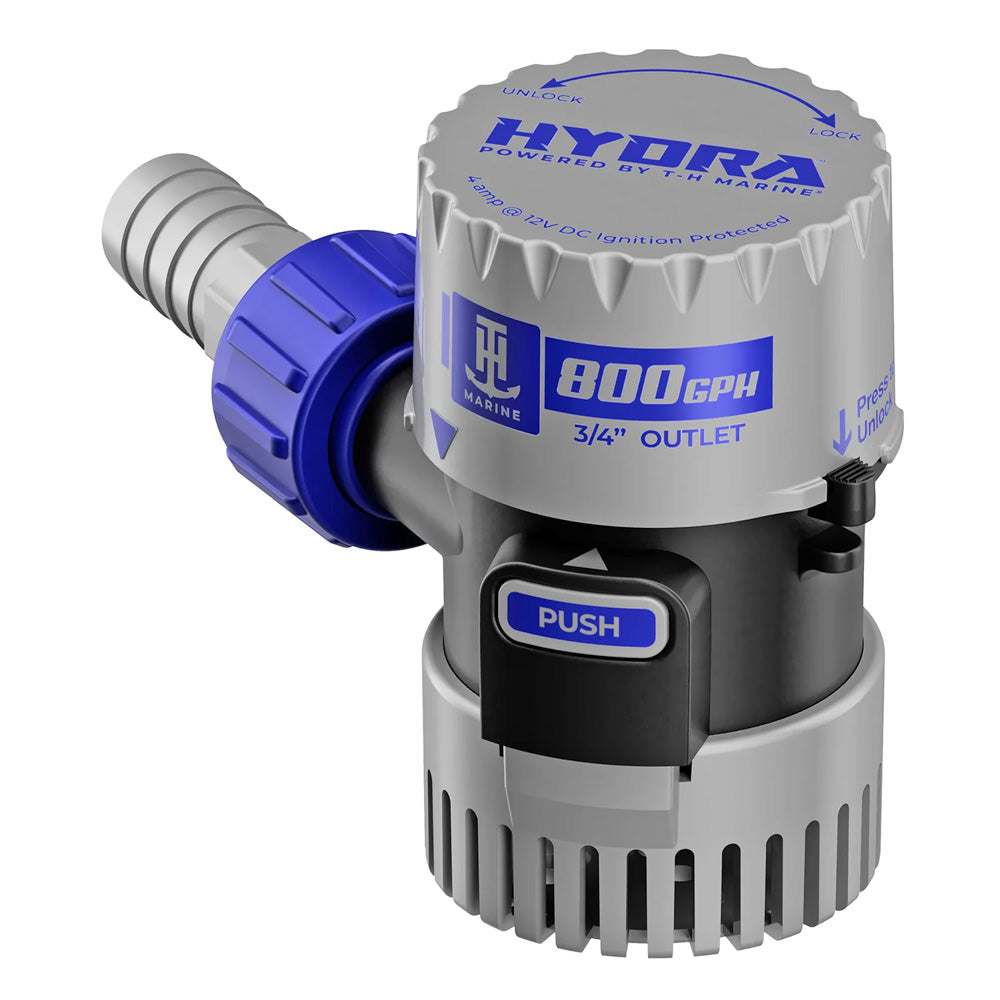

HYDRA™ Cartridge Bilge Pump - 800 GPH - 12V

The HYDRA™ Cartridge Bilge Pump is engineered for dependable marine water removal with a service-friendly cartridge design that allows rapid motor replacement without removing the pump housing. Backed by 4,000 hours of testing, HYDRA delivers consistent performance through an advanced anti-airlock design that ensures reliable restarts—even when air is present in the line.

Built for long-term durability in harsh marine environments, the HYDRA Cartridge Bilge Pump features a precision-balanced motor and a 316 stainless steel motor shaft to reduce vibration, noise, and corrosion. Stator vane technology optimizes flow efficiency, while the dual-lock cartridge system allows quick, tool-free motor removal for fast servicing on the water or at the dock.

Designed with OEM-friendly installation in mind, the positive-lock strainer base matches most standard mounting patterns, and the pump includes straight and 90° outlets, a backflow restrictor, and a flat seal for flexible plumbing configurations. Available in 600 GPH, 800 GPH, and 1100 GPH options and meeting ABYC, ISO, and U.S. Coast Guard standards, the HYDRA Cartridge Bilge Pump delivers reliable performance boaters can trust.

Features:

• AMP DRAW: Approx. 4A
• FUSE SIZE: 5 AMP
  • FLOW RATE: 800 GPH
• ANTI-AIRLOCK DESIGN: Engineered to restart reliably, even with air in the line.
• 316 STAINLESS STEEL MOTOR SHAFT: Corrosion-resistant for long-term durability.
• PRECISION BALANCED MOTOR: Runs smoother with reduced vibration and noise.
• REMOVABLE NOZZLE: Allows quick service without disconnecting the hose.
• STATOR VANE TECHNOLOGY: Optimizes flow efficiency and performance.
• POSITIVE-LOCK STRAINER BASE: Mounting pattern matches most manufacturers.
• DUAL LOCK CARTRIDGE: Designed for quick removal and fast service.

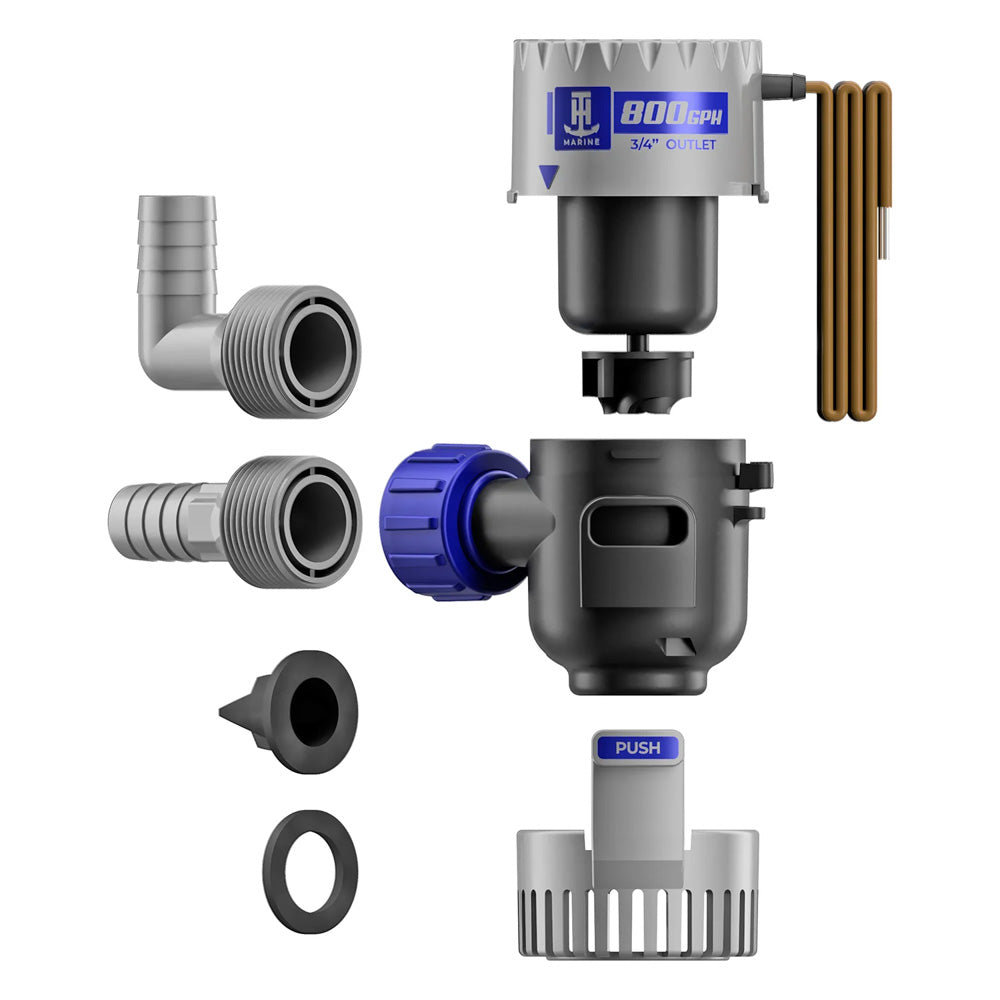

• INCLUDES: Straight & 90º Outlet, Backflow Restrictor, and Flat Seal

Specifications:

• Gallons Per Hour: 800 GPH
• Gallons Per Minute: 13
• Type: Pumps/Drives
• Volts: 12
• Box Dimensions: 6"H x 6"W x 9"L WT: 1.55 lbs
• UPC: 733572258295
