Shakespeare 5215-C-X 3' VHF Antenna [5215-C-X]
Art: 5215-C-X-SHA
![Shakespeare 5215-C-X 3' VHF Antenna [5215-C-X]](http://www.marinepartsandelectronics.com/cdn/shop/files/10632XL_840x.jpg?v=1732310706)
![Shakespeare 5215-C-X 3' VHF Antenna [5215-C-X]](http://www.marinepartsandelectronics.com/cdn/shop/files/10632BXL_840x.jpg?v=1732310708)
![Shakespeare 5215-C-X 3' VHF Antenna [5215-C-X]](http://www.marinepartsandelectronics.com/cdn/shop/files/10632XL_1920x.jpg?v=1732310706)
![Shakespeare 5215-C-X 3' VHF Antenna [5215-C-X]](http://www.marinepartsandelectronics.com/cdn/shop/files/10632BXL_1920x.jpg?v=1732310708)
Description

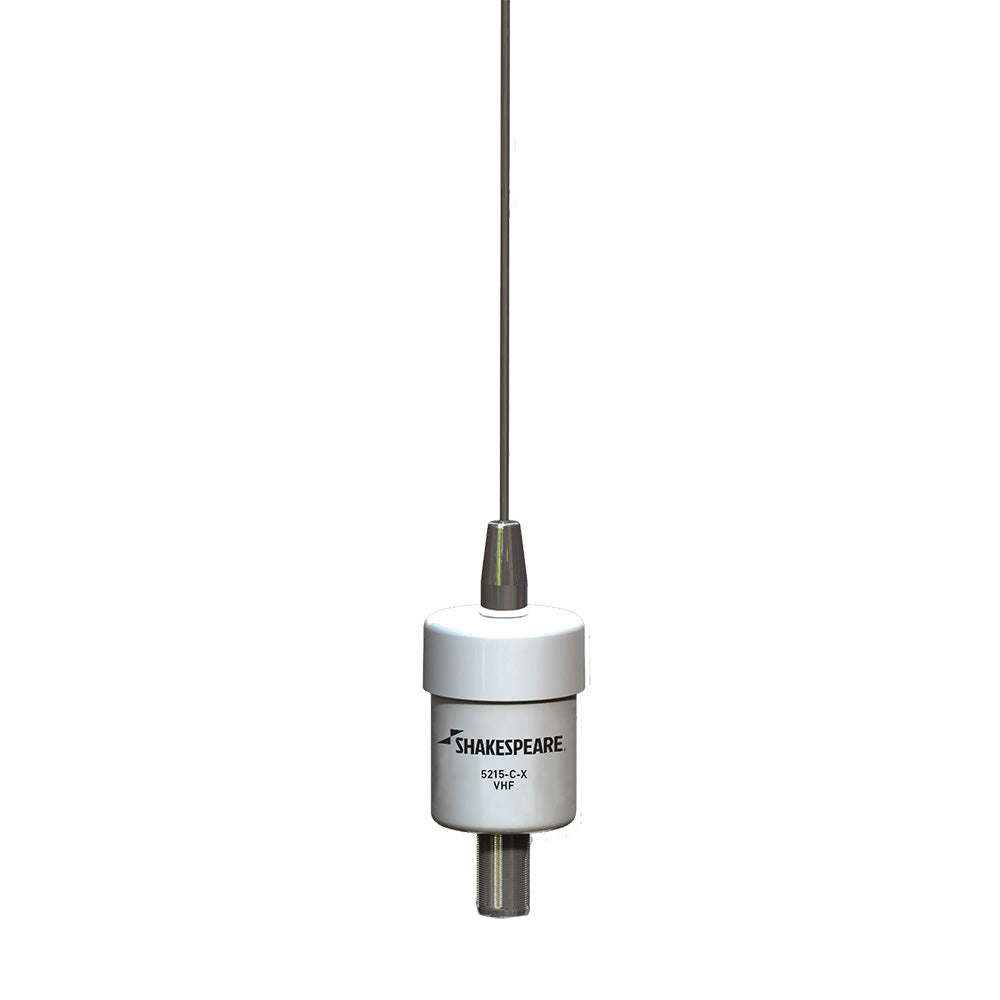

Shakespeare Style 5215-C-X SQUATTY BODY® VHF Marine
36" LENGTH, 3dB
END-FED 1/2-WAVE STAINLESS STEEL WHIP
Same as the Style 5215 but comes with 60' RG-8/X low-loss cable and PL-259 connectors.
A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.
- Hermetically sealed, tin-plated copper wire coil
- Stainless steel body and whip
- SO-239 connector
- Includes 60' RG-8/X low-loss cable and PL-259 connectors.
- Mount: Stainless steel "L" bracket supplied, for mast mounting
- One section
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | 7 MHz |
| SWR: | 1.5:1 @ 156.8 MHz |
| Impedance: | (Ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | 60' RG-8X cable |
| Height (feet): | 3' |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
Specifications:
- Antenna Band: VHF
- Color: Stainless
- Construction: Stainless Steel
- Length (Inches): 36"
- Box Dimensions: 4"H x 4"W x 44"L WT: 4.2 lbs
- UPC: 719441100155
