Powerwinch

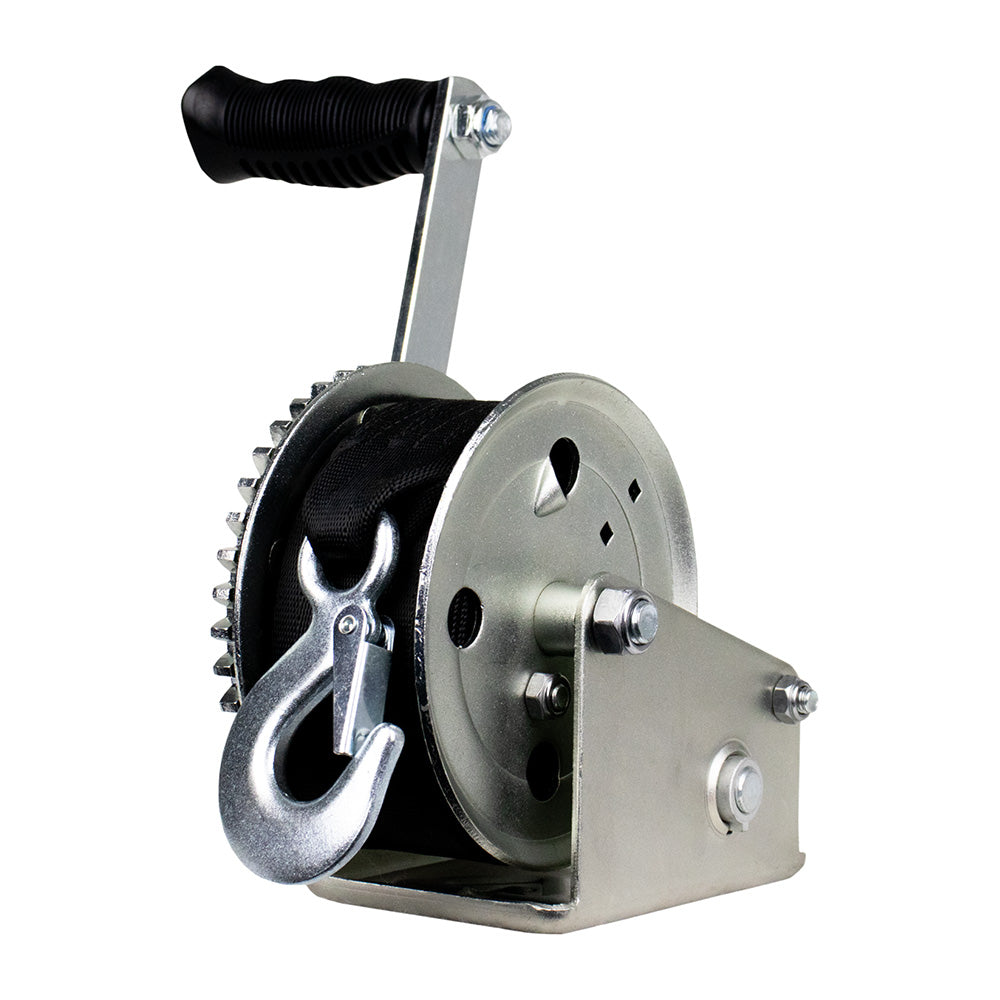

Powerwinch Utility Series Winch 1,200lb, 8" Crank Arm - Zinc [21500-W-1200-8-Z-R]
Description
Utility Series Winch 1,200lb, 8" Crank Arm - Zinc
Fully assembled and ready to install.
Features:
- Oversized textured handle - Comfortable, no-slip grip
- Premium precision gearing - High-efficiency gearing improves pulling capacity with less cranking torque
- Dual-bolt clamp coupling - Ensures crank arm will not loosen or decouple from pinion spindle
- Powder-coated, die-cast, aluminum crank arm - Superior leverage
- Oversized, powder-coated, steel frame - Maximum loading strength and durability
- Integrated zerk grease fitting - Easy pawl and ratchet gear lubrication
- Powder-coated, die-cast, aluminum covers - Durable design resists corrosion, long-lasting
- Adjustable mounting - Accommodates numerous trailer configurations
- High-quality, 20' strap - 2” wide, four-panel webbing, polyester strap with forged snap hook
Specifications:
- Weight Capacity (lbs): 600, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2500, 3200
- Color: Zinc
- Finish: Zinc Plated
- Cover: None
- Crank Arm Lengths: 6” or 8”, 9” or 11” for 3200 only
- Application: Freshwater
Specifications:
- Gear Ratio: 4.1:1
- Manual/Electric: Manual
- Pull Strength (lbs): 1200
- Box Dimensions: 6"H x 7"W x 9"L WT: 8 lbs
- UPC: 810123843534
Quick Guide (pdf)
