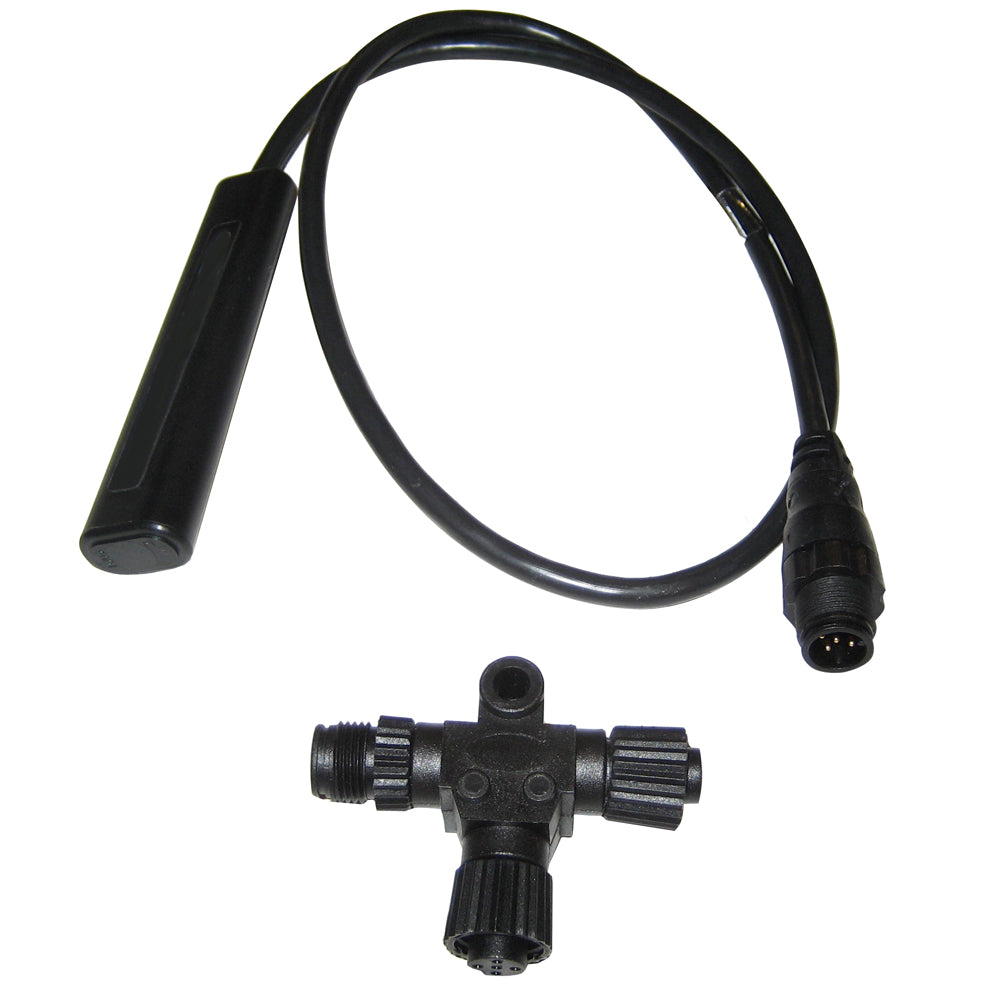

Fuel Data Manager

Monitors Fuel Rate/Fuel Flow from NMEA 2000 engines, and accumulates Fuel Rate into Fuel Used. Outputs seasonal, trip and total fuel used.

Features

• Replaces EP-85
• Monitors Fuel Rate/Fuel Flow from NMEA 2000 engines, and accumulates Fuel Rate into Fuel Used
• Outputs: Seasonal/Trip/Total Fuel Used
• Will report accurate Vessel Fuel Remaining if MFD Fuel screen is maintained at every refuel
• One sensor will monitor up to 3 engines
• Additional Fuel Data Managers can be added for more engines
• Will monitor fuel rates from multiple engines transmitting through a single gateway

Specifications:

• Connection Gender: Male
• Data Interface: NMEA 2000
• Cable Length (Meters): 0.5m
• Box Dimensions: 3"H x 4"W x 10"L WT: 0.3 lbs
• UPC: 9420024129906
