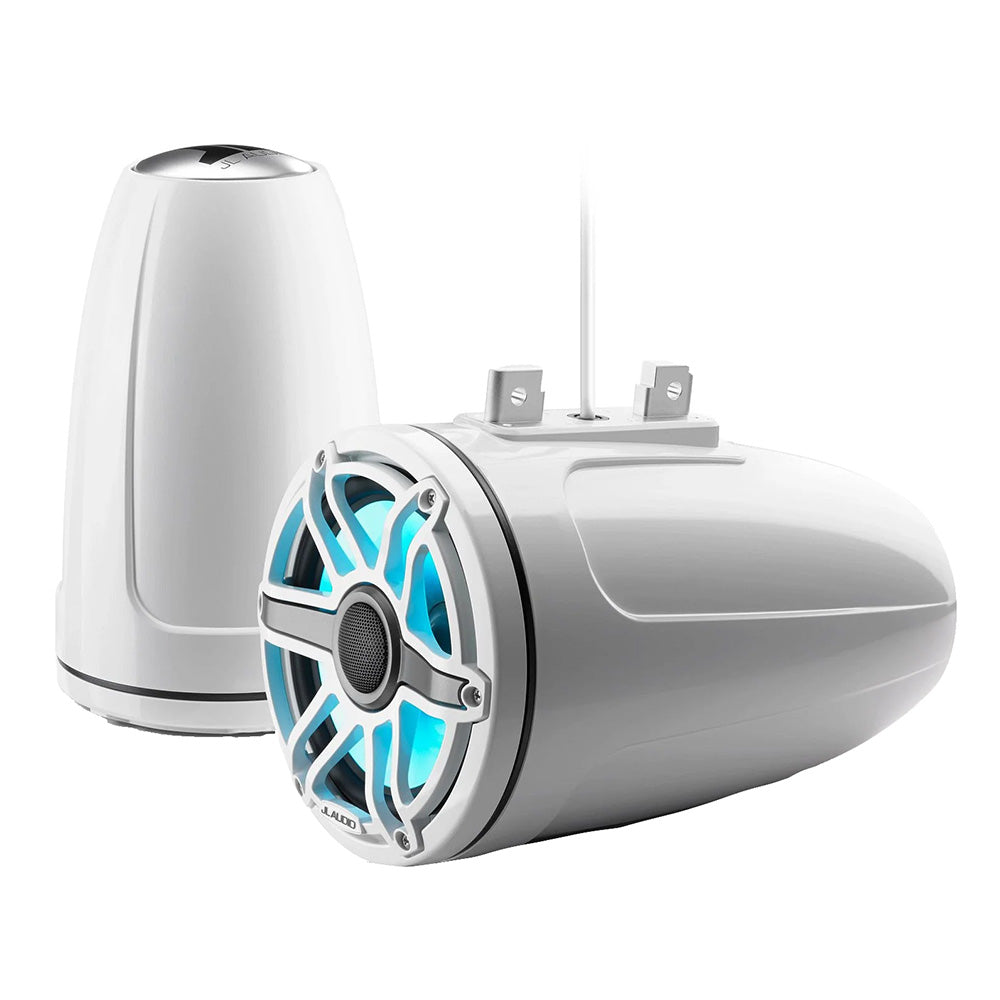

M6 Series 7.7" Enclosed Tower Coaxial System with Gloss White Classic Grille & Transflective™ LED Lighting - M6-770ETXv3-Gw-S-GwGw-i

UNLEASH GREAT SOUND BEYOND YOUR BOAT

Whether you’re on the boat or riding the wake behind it, the JL Audio M6 is the ultimate tower speaker system for delivering powerful, crystal-clear sound that you can hear and enjoy well beyond the boat.

Features

• Powerful midbass output in open-air applications
• 7.7" coaxial speakers with silk dome tweeters
• Wide range of tubular or surface-mounting options
• Transflective™ RGB LED Lighting
• Exceeds international standards for salt fog and UV exposure
• 3-Year warranty

Towering Performance

Robust M6 speakers are ideal for wakeboard towers or other tubular structures — or they can be flat mounted to decks and other surfaces to deliver superb sound quality with strong projected output.

DMA-Optimized Woofers

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

Matching Silk Dome Tweeters

Precisely tuned tweeters, uniquely sized for each woofer’s diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.

Advanced Filter Networks

Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.

Powerfully Efficient

M6 series marine speakers used in this system benefit from operation with quality amplification for superior audio clarity at all volume levels.

Real Marine Duty

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

In The Box

• Two wake tower enclosures with marine coaxial loudspeakers and grills installed
• Two aluminum logo caps
• One tube of silicone adhesive
• Four blue butt splice connectors (#16-14 AWG)
• Eight red butt splice connectors (#22-18 AWG)

Specifications

• Size: 7.7"
• Color: White Sport
• Physical Dimensions (Diameter): 7.70"
• Physical Dimensions (Depth): 12.62"
• Speaker Type: Enclosed Coaxial
• Continuous Power Handling (RMS): 100w
• Sensitivity (SPL @ 1w/1m): 91.0 dB
• Frequency Response (+/- 3 dB): 38 Hz - 20 Hz
• Nominal Impedance: 4 Ohm
• Recommended Amplifier Power (RMS): 40-200 w/channel
• LED Lighting: Yes - Transflective™
• LED Supply Voltage: 10-14.4 VDC
• LED Load Current @ 14.4 VDC (Max): 324 mA
• Cone Material: Injection-molded, mica-filled polypropylene
• Tweeter Type: Silk Dome
• Tweeter Size: 1"
• Warranty: 3-Year

Connections

• Speaker Connections: Flying Lead with 16 AWG wire (10 ft)
• Flying Lead with 4-conductor 20 AWG wire (10 ft)

Specifications:

• LED Lighting: Yes
• QTY: Pair
• Size: 7.7"
• Watts RMS: 100w
• Box Dimensions: 10"H x 16"W x 20"L WT: 23.2 lbs
• UPC: 699440936552
