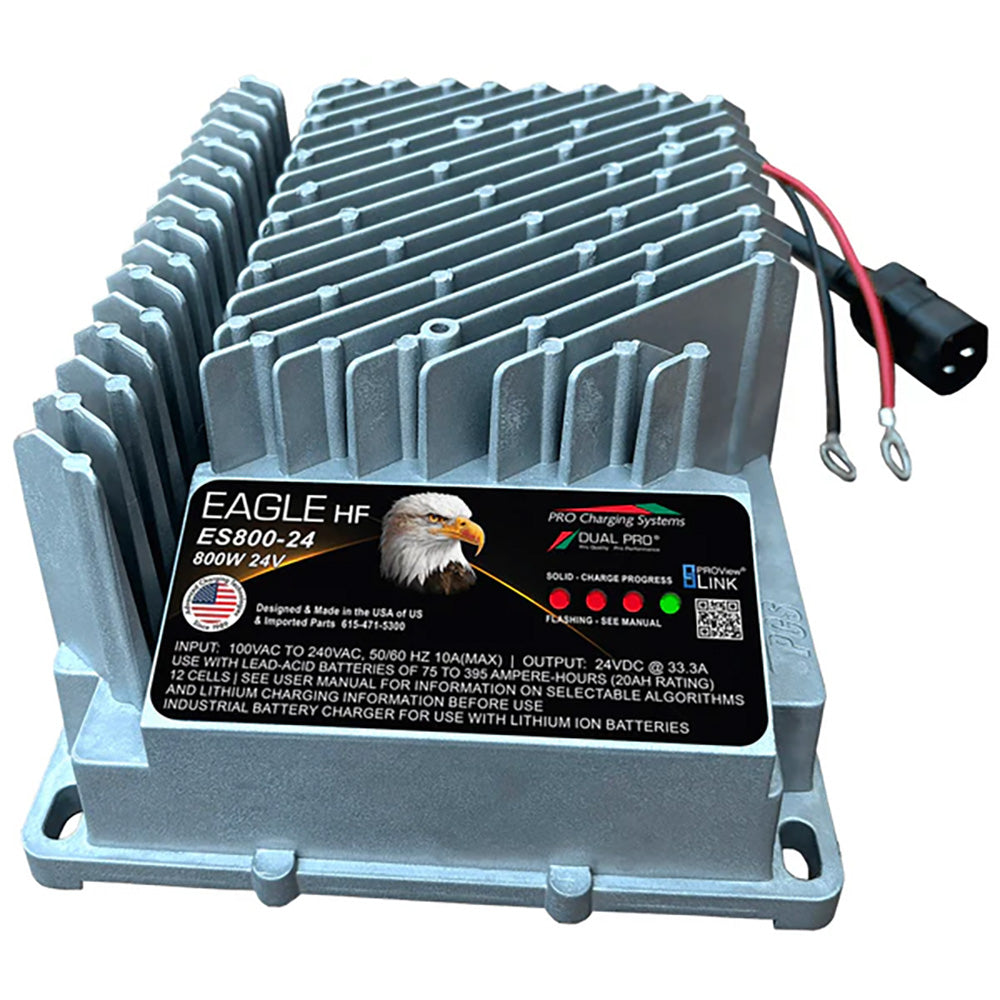

HF Eagle ES800 Series 24V Single Lithium Charger

For Marine, Golf, Aerial, Emergency Services, Floor Scrubbers, and more.

Applications:

• Marine: Connect to our PROView Link app to choose the right algorithm for your Lithium, AGM, or Lead Acid batteries and more.
• Golf & LSV: Pair our portable charger with our 7.5 ft. interchangeable connector cables. We offer options for most major cart manufacturers. Our PVL app allows you to choose the algorithm for your battery(s) chemistry.
• Aerial Equipment: Our chargers work with most Scissor and Boom Lifts, as well as various carts and burden carriers' manufacturers.
• Emergency Services: First Responders & Warning Systems depend on our chargers to keep their batteries charged and conditioned for use when needed.
• Floor Scrubbers: Rugged and Waterproof to work in any Janitorial/Industrial environment.
• Your Equipment: The Eagle Series HF (ES800) is the perfect choice for any application requiring a Powerful, Durable, Waterproof Charger with Advanced Data Monitoring & Logging capabilities, with selectable algorithms all accessible via our free-to-download PROView Link App.

Features:

• Portable and Onboard Options
• Output: 800W - 24VDC @ 33.3A, 36VDC @ 22.48VDC, & 48VDC @ 16.7A
• AC Universal Input (85-270 VAC 50/60HZ)
• CAN Capable
• PROView Link App Enabled to receive over-the-air updates and more
• Dimensions: L10" x W7.15" x H4"
• Weight: 11 LBS
• Developed to be interleaved for higher output requirements
• US Designed and Assembled

Specifications:

• Charger Input - Voltage: 120v
• Charger Output - Amps: 25a
• Charger Output Voltage: 24v
• Charging Banks: 1
• Portable: No
• Box Dimensions: 5"H x 12"W x 14"L WT: 11.6 lbs
• UPC: 738562003329
