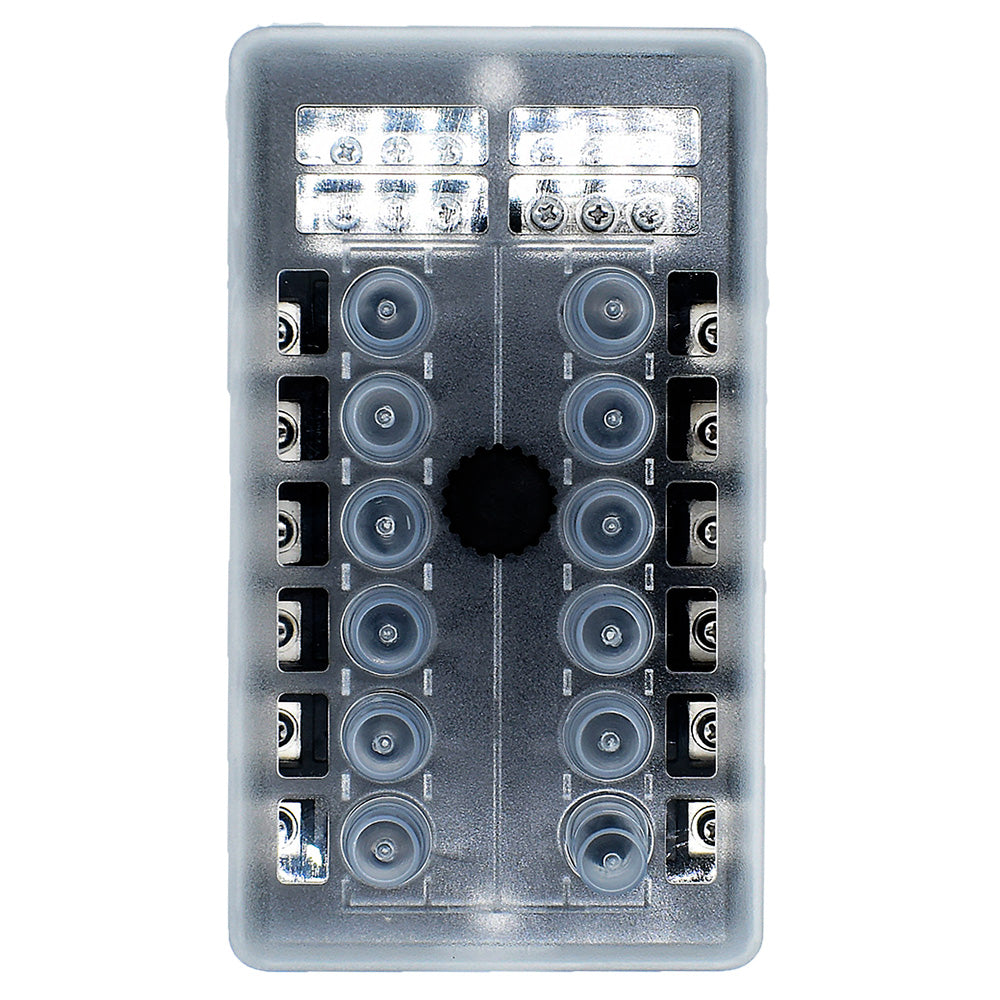

12 Position Beaker Block with Cover

A circuit breaker block is the smarter alternative to a traditional fuse box. Instead of worrying about blown fuses, each circuit is protected by a resettable thermal breaker. If one trips, simply press the breaker and restore power instantly—no spare fuses required.

Why Choose Our Circuit Breaker Block?

• Resettable protection – Uses our 38 Series push-to-reset breakers instead of disposable fuses..
• High capacity – Rated up to 48V DC with a 100A input.
• Reliable design – Nickel-plated copper, stainless steel hardware, and a durable polycarbonate base.
• Easy installation – Mounting holes sized and spaced for straightforward panel placement.

Technical Specifications:

• Input terminals: M5 threaded studs
• Output terminals: M4 studs, rated 25A max per circuit
• Configurations: 12-position
• Mounting dimensions: 12-position: 6.61” x 3.54”

Built for Marine & Mobile Systems

This circuit breaker block is engineered to handle the harsh realities of marine environments—salt spray, vibration, and constant use. Whether you’re wiring a new build or upgrading a fuse box, it provides a clean, reliable, and resettable power distribution solution.

Specifications:

• Amperage: 100
• Box Dimensions: 3"H x 9"W x 12"L WT: 0.95 lbs
• UPC: 810196332317
