Blue Sea Systems

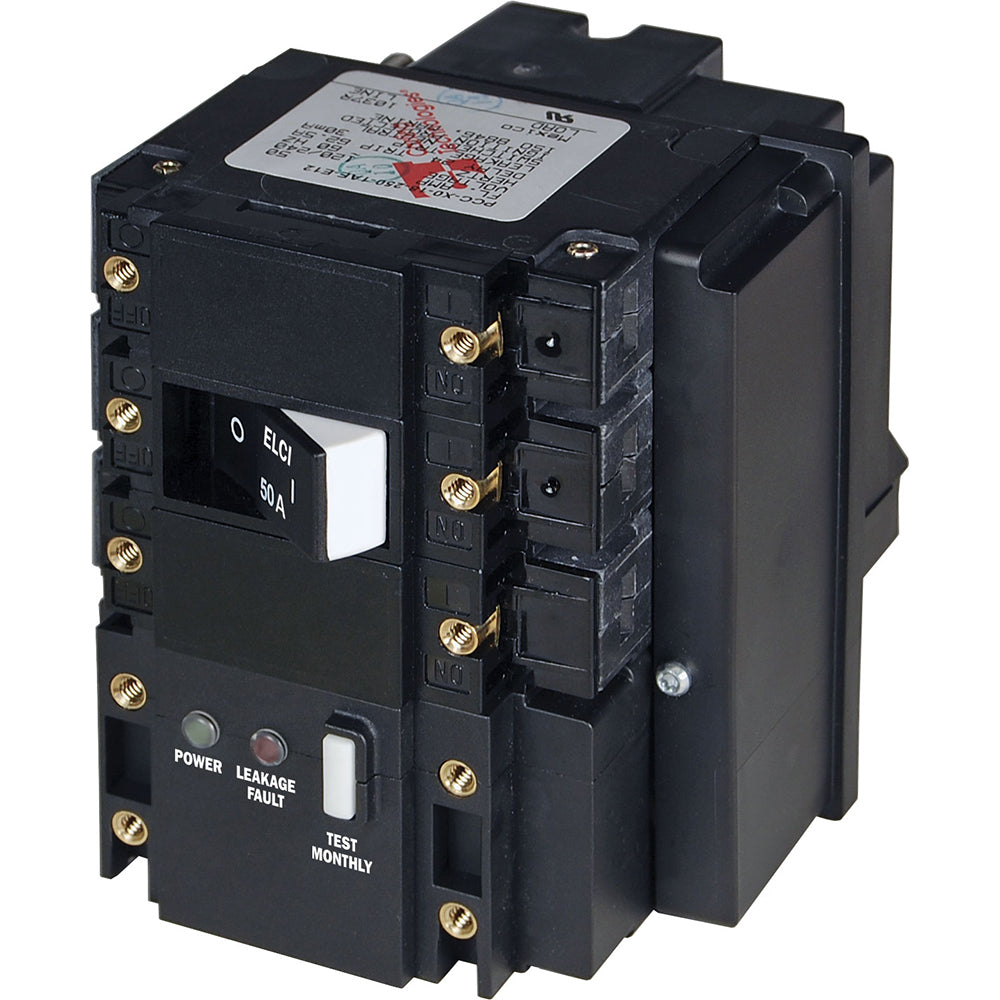

Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A [3104]
Art: 3104-BLU
![Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A [3104]](http://www.marinepartsandelectronics.com/cdn/shop/files/85024XL_840x.jpg?v=1732428271)
![Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A [3104]](http://www.marinepartsandelectronics.com/cdn/shop/files/85024XL_1920x.jpg?v=1732428271)
Description
C-Series ELCI Main Circuit Breaker - 120/240V AC 50A
Features:
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 50A
- Actuator Style: Flat Rocker
- Poles: 3
- Ignition Protected: Yes
- Max Voltage: 120VAC per pole/240VAC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Max Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
