Blue Sea Systems

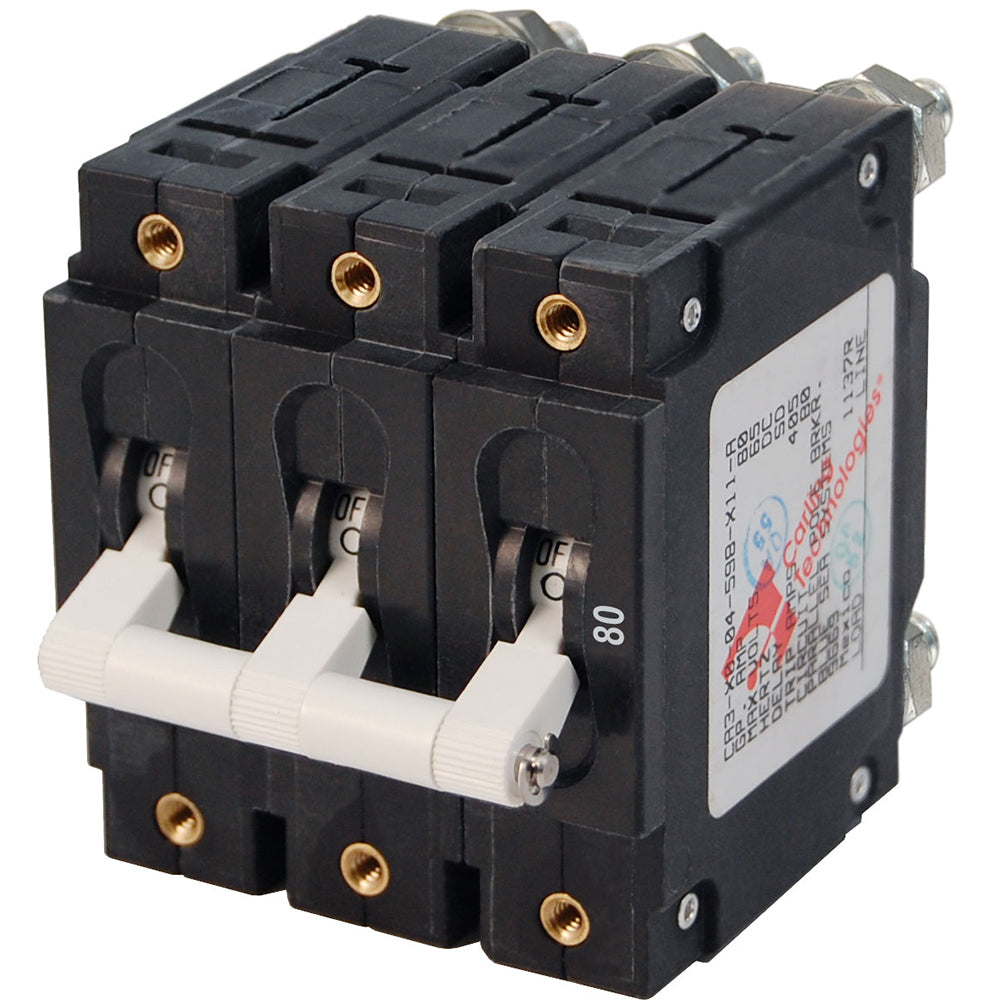

Blue Sea 7289 C-Series Triple Pole Circuit Breaker - 80A [7289]
![Blue Sea 7289 C-Series Triple Pole Circuit Breaker - 80A [7289]](http://www.marinepartsandelectronics.com/cdn/shop/files/20608XL_840x.jpg?v=1747419398)
![Blue Sea 7289 C-Series Triple Pole Circuit Breaker - 80A [7289]](http://www.marinepartsandelectronics.com/cdn/shop/files/20608XL_1920x.jpg?v=1747419398)
Description
C-Series Toggle
PN: 7289
Poles: 3
Color: White
Amperage: 80A
Features:
- 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection
- Double pole used as 120 volt AC main circuit breaker to switch hot to neutral
- Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral
- Double and triple pole circuit breakers will trip all poles will trip if any one pole trips
- "Trip Free" design cannot be held "ON" during fault current condition
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 80a
- Box Dimensions: 4"H x 5"W x 5"L WT: 0.95 lbs
- UPC: 632085072896
