Airmar

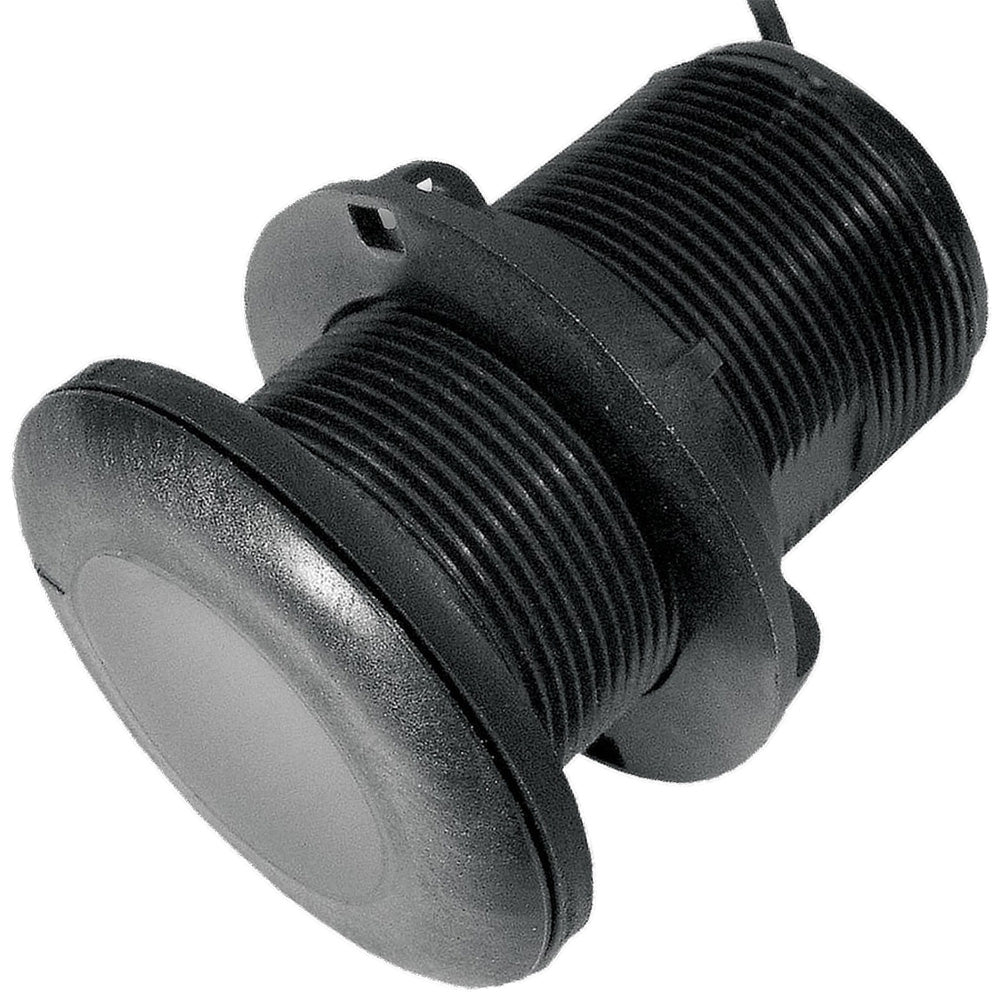

Airmar P319 Plastic Thru Hull Depth Temperature Transducer - 600W- 50/200kHz - Requires Mix Match Cable
Description
P319 Plastic Thru Hull Depth & Temperature Transducer - 600W- 50/200kHz - Requires Mix & Match™ Cable
Airmar’s entry-level P319 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile, plastic housing. The nearly flush design minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Requires Mix & Match™ Cable for the Fishfinder Unit
- Cable Length 2M
- Deadrise Range: Best performance through 7°. Can accommodate up to 12°.
- Hole Size: 51 mm (2")
- Usable Shaft Length: 63.5 mm (2.50")
- Depth only or depth and fast-response water-temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 366 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 213 m (700')
- Right-angle cable exit saves space and protects the transducer if stepped on
- An included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Low-profile housing has minimum drag
- Plastic housing is ABYC H-27 compliant
Specifications:
- Cable Length (Feet): 3'
- Chirp: No
- Imaging: Standard
- Mounting Style: Thru-Hull
- Pins: 5
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 4"H x 6"W x 8"L WT: 1.8 lbs
