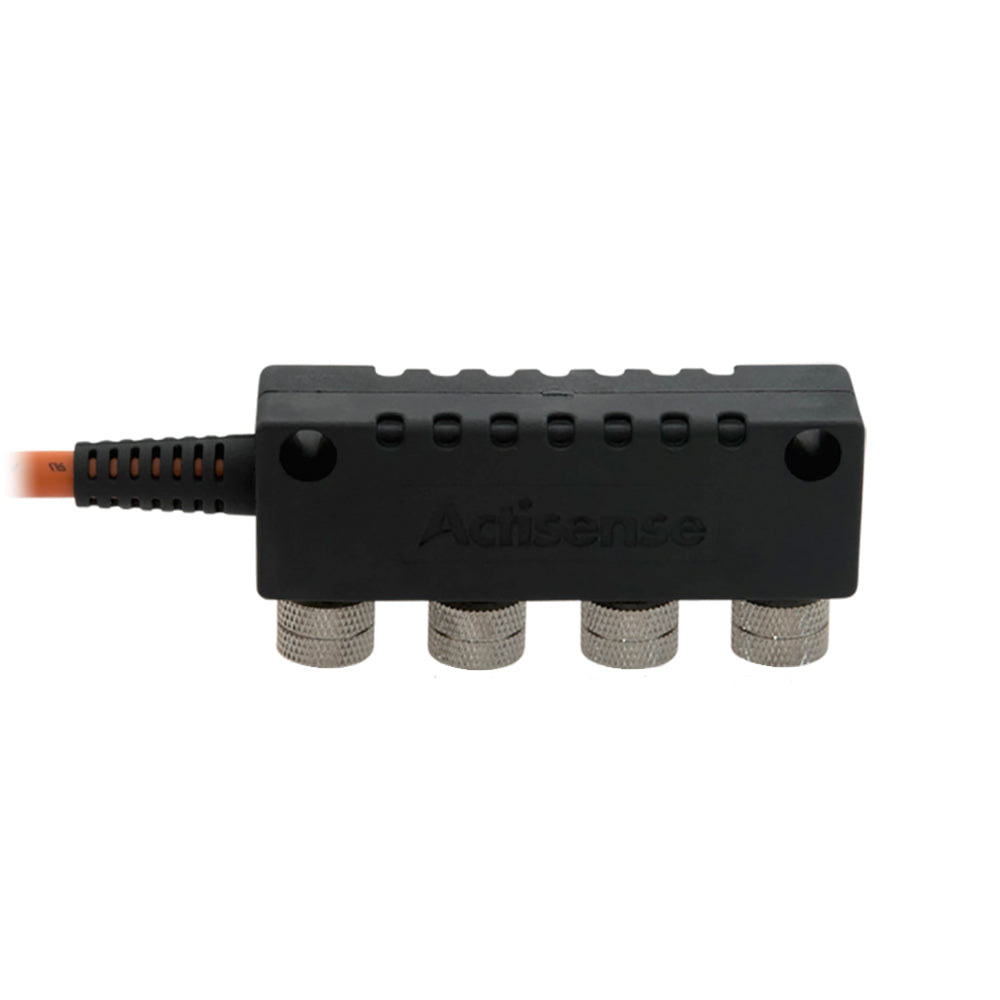

Self-Contained Boat Network - Complete Network for 4 Devices with Internal Terminators and Power Feed

Installing small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN-1) from Actisense.

The equivalent of four T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.

Once the attached 3 meter cable is connected to the boats power supply, an NMEA 2000 network for up to four devices is ready to use, taking ‘plug & play’ to the next level.

Features:

• Self-contained NMEA 2000 Network
• Integrated Termination Resistors
• 4x NMEA 2000 drops
• Ruggedized, flame retardant over-molded housing
• Metal coupling nuts
• Integrated EMI shield
• Orange, UL Rated, 3-meter power cable
• Color coded wires, stripped and tinned
• Low cost, quick to install and provides and easy way to connect multiple NMEA 2000 devices.
• Simple installation, fewer components, more reliable, lower cost.
• Accommodates the vast majority of compact NMEA 2000 networks
• Suitable for wet and harsh conditions- highly desirable in marine environments
• Reliable, long lasting connections
• Less likely to be susceptible to interference
• UL rated cable provides peace of mind. Color easily differentiates the power cable from drop cables
• Quick installation, no special tools required

Technical Specifications:

Electrical

• Rated Current - 3A
• Rated Voltage - 60 V (AC/DC)
• Internal Termination Resistors - 2 x 121Ω 250mW

Mechanical

• Female Contact - Phosphor bronze, gold plated
• Contact Carrier - PA66 (30% Glass filled), black
• Contact Polarization - Standard M12 -“A”- polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, black
• Housing - TPU, Black, Halogen Free
• Flammability Rating - UL94 V-0
• Internal Housing Shield - Copper Foil
• Cable Jacket Material - 0.8mm Nom. PVC, orange
• Cable Outer Diameter - 6.8mm
• Cable Length - 3m
• Wire Length - 140mm (10mm stripped and tinned)
• Wire Jacket - PVC, Red & Black
• Power Wires - 16 AWG
• Shield (Drain) Wire - 18 AWG
• Cable Shield - Al-mylar
• Weight - 360g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -25°C to +70°C
• Storage Temperature - -40°C to +85°C

Specifications:

• Data Interface: NMEA 2000
• Cable Length (Meters): 3m
• Box Dimensions: 2"H x 7"W x 9"L WT: 0.8 lbs
• UPC: 5060998710171
