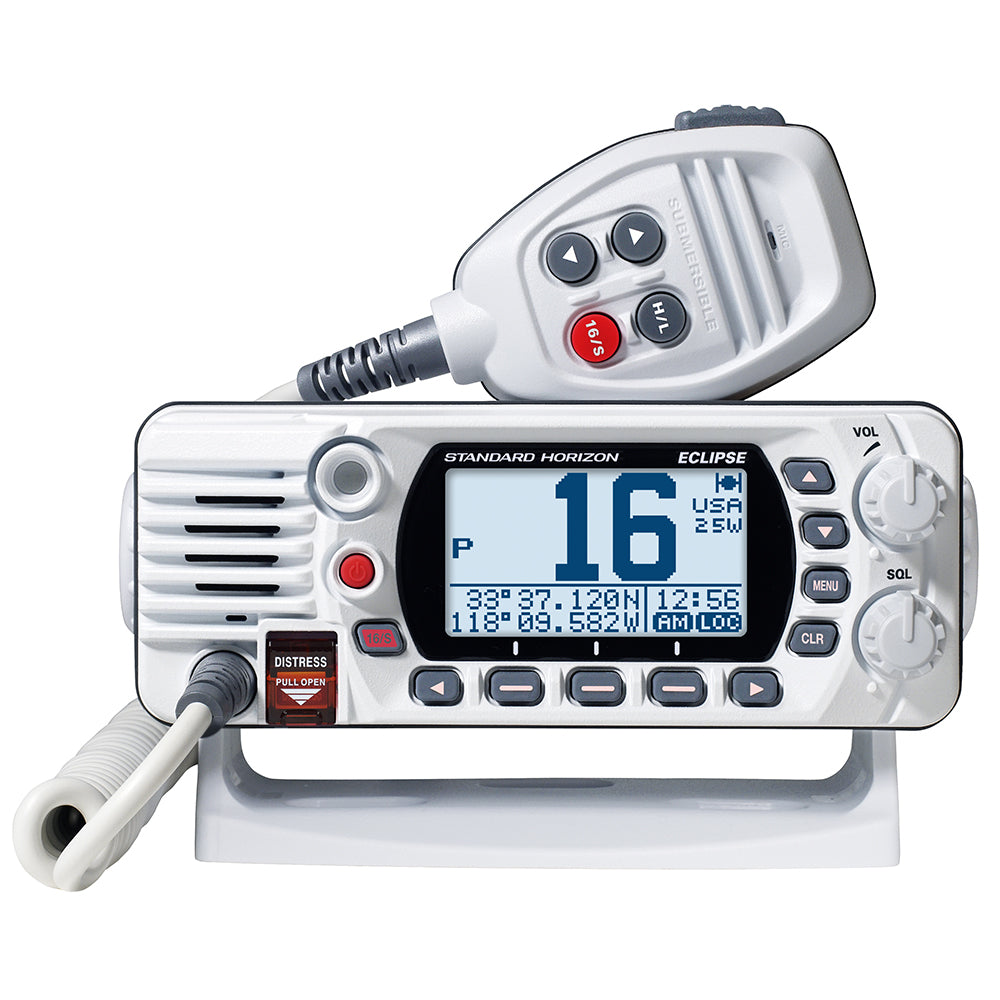

GX1400 Fixed Mount VHF - White

ITU-R M493-13 Class D Digital Selective Calling

The GX1400 Eclipse Series is an ITU-R M493-13 Class D VHF with a separate Channel 70 receiver, allowing DSC calls to be received even while listening to communications.

When activated, the DSC DISTRESS function transmits a digital MAYDAY, including vessel identification, Latitude/Longitude, and time (with GPS connected), to facilitate a prompt response. Additional calls that can be made are Individual, Urgency, Safety, Position Report, and Send.

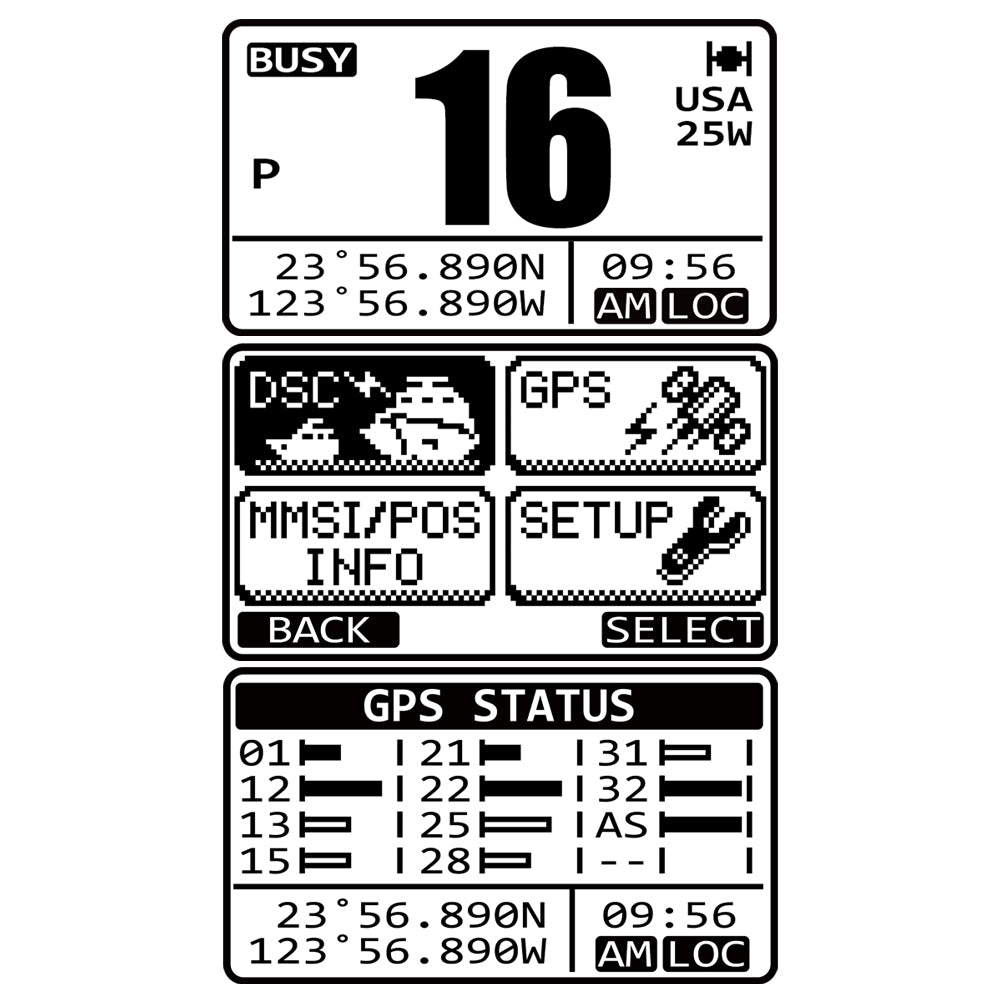

Dot Matrix Display

High-resolution dot matrix display makes navigating the radio's many features smooth and easy. Now with a brighter backlight for better display contrast

E2O Easy to Operate Menu System

Redesigned with the operator in mind, the Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming have never been easier.

3-Year Waterproof Warranty

If your Eclipse Series radio fails for any reason (including water damage) during normal use for the first 3 years of ownership, Standard Horizon will repair or replace it free, without hassles or charges. If it fails at any time thereafter in normal use, for as long as the original purchaser owns the radio, the Lifetime Flat Rate and Customer Loyalty Service Programs will cover it.

Features:

• Affordable Ultra Compact Class D Fixed Mount VHF Radio
• Meets ITU-R M493-13 Class D DSC (Digital Selective Calling)
• Replaces older Eclipse+ and Eclipse DSC Models
• Radio controls on the Microphone
• E2O Easy-to-Operate Icon/Menu System
• Oversized Full dot matrix display (31 mm x 55 mm)
• Built-in Separate Receiver for CH70 (Receiving DSC Calls)
• DSC test call and Auto DSC channel change selection
• GPS position and Time Shown on a Full-dot Matrix Display when connected to a GPS Receiver
• NMEA In and Output Connections to a Compatible GPS Chart Plotter
• Programmable soft keys
• Automatically poll the GPS position of up to 4 ships using DSC
• Submersible IPX8 waterproof rating (1.5 m or 4.92 feet for 30 minutes)
• All USA/International and Canadian Marine Channels
• Preset key used to recall up to 10 favorite channels
• NOAA weather channel selection with Weather Alert
• Programmable Scan, Priority Scan, and Dual Watch
• Flush Mount Dimensions: 5.15" W × 1.97" H × 4.72" D

Specifications:

• AIS: No
• Built-In GPS: No
• Hailer: No
• NMEA 2000: No
• Remote Mic Capable: No
• Scrambler Capable: No
• Color: White
• Intercom Capability: No
• Box Dimensions: 4"H x 8"W x 10"L WT: 2.9 lbs
• UPC: 788026174317
