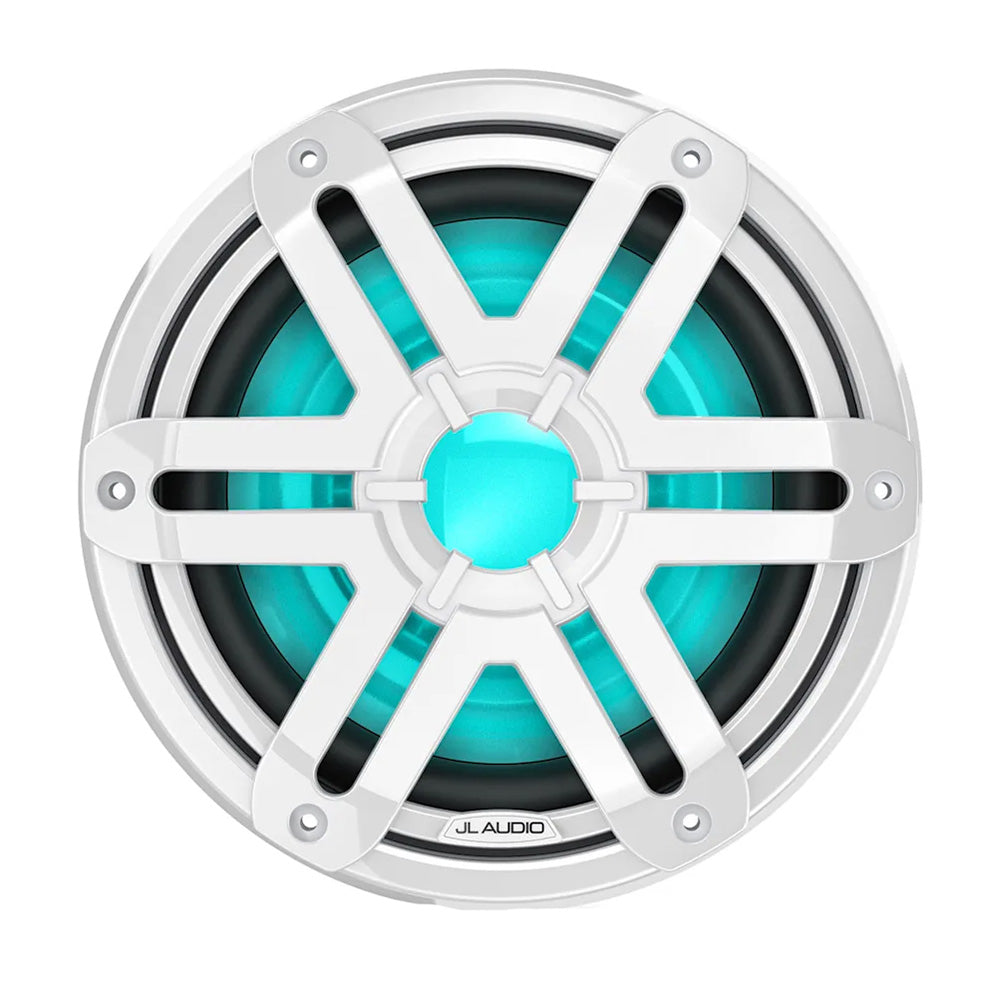

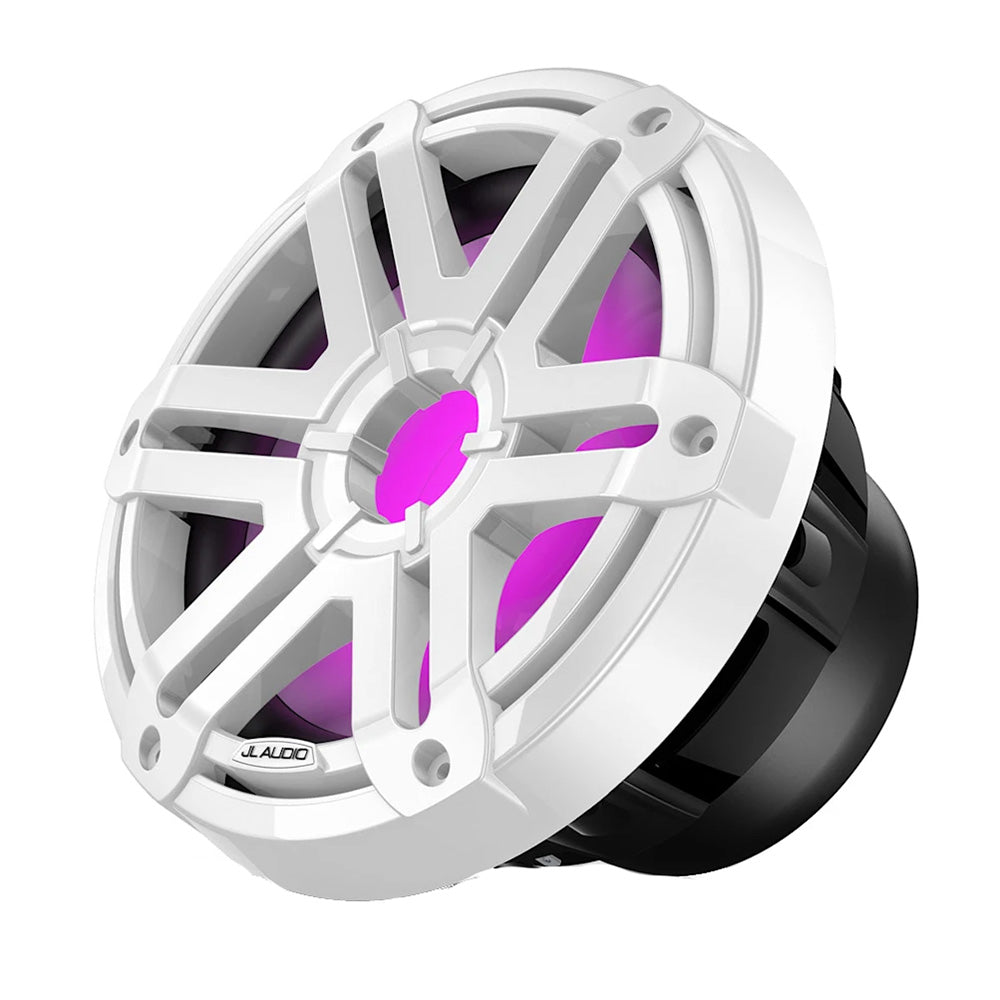

M200 Marine Subwoofer 10" with LED & White Sport Grille

Enhance your experience on the water with JL Audio M200 subwoofers, which bring M-series bass for less.

Features:

• 250-WATT RMS POWER HANDLING
• RGB LED LIGHTING
• LONG-EXCURSION DESIGN DELIVERS DEEP AND POWERFUL BASS
• INTERCHANGEABLE GRILLE OPTIONS (SOLD SEPARATELY)
• MARINE-GRADE CONSTRUCTION

BUILT TO IMPRESS

This 10-inch subwoofer features an injection-molded polypropylene cone and rubber surround with a marine-grade synthetic spider to keep the cone under control for tight bass response.

RGB LED LIGHTING

Enhance your audio experience with a wide spectrum of colors. Pair with the Garmin Spectra™ control module (sold separately) for advanced lighting control from your compatible chartplotter or the ActiveCaptain® app.

INCREDIBLE PERFORMANCE

With 250-watt RMS power handling and a long-excursion design, this subwoofer delivers powerful and deep bass with less distortion.

CUSTOMIZABLE GRILLE OPTIONS

Match the look of your vessel with white or gray color options along with interchangeable grilles (sold separately).

SALT AND SUN PROTECTED

Sail to your heart’s content knowing that your speakers are built from marine-grade materials and finishes with corrosion-resistant connections and circuit boards to withstand salt and sun.

INFINITE BAFFLE DESIGN

M200 marine subwoofers are purpose-engineered to operate without a dedicated enclosure, needing only a moderate amount of air behind them.

Mounting Dimensions:

• Mounting depth clearance: 5.16" (131 mm)
• Frontal grille protrusion: 1.85" (47 mm)
• Mounting hole: 8.75" (222 mm)
• Bolt hole circle: 9.72" (247 mm)

General:

• Warranty: 3 years
• Sizes: 10"
• Color: White Sport
• Physical dimensions (Diameter): 10.84" (275 mm)
• Physical dimensions (Depth): 5.16" (131 mm)
• Weight: 10.69 lbs (4.85 kg)
• Water and dust rating: IPX6
• Speaker type: Infinite Baffle Subwoofer
• Continuous power handling (RMS): 250 W
• Sensitivity (SPL @ 1 W/1 m): 86 dB
• Nominal impedance: 4 Ω
• Recommended amplifier power (RMS): 250 W
• LED lighting: yes (RGB)
• LED supply voltage: 10 - 14.4 VDC
• LED load current @ 14.4 VDC (max): 220 mA
• Cone material: Injection-molded, polypropylene
• Compass-safe distance: 116" (295 cm)

Networking & Connections:

• Speaker connections: Spade connectors
• LED connection: Flying lead with waterproof connector, 4-conductor 20 AWG wire

In The Box:

• One subwoofer with grille
• One 0.25” female crimpable connector
• One 0.185” female crimpable connector
• One water-resistant 4-pin connector
• Mounting screws
• Documentation

Specifications:

• Cutout Size: 8.75"
• Mounting Style: Surface
• QTY: Single
• Size: 10"
• Watts RMS: 250w
• Box Dimensions: 8"H x 13"W x 14"L WT: 14.55 lbs
• UPC: 753759376864
